WSME-200X IGBT Inverter AC/DC and Pulse TIG Welding Machine

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / NEW Products / TIG / WSME-200X IGBT Inverter AC/DC and Pulse TIG Welding Machine

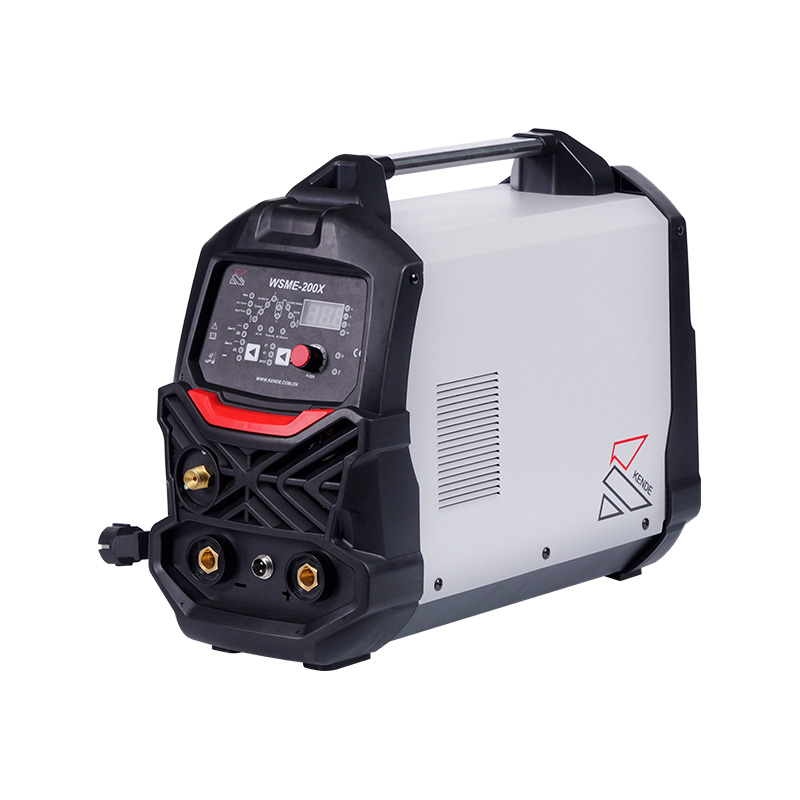

WSME-200X IGBT Inverter AC/DC and Pulse TIG Welding Machine

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Use powerful IGBT switches and advanced two-times inverter control technology.
●Use Digital and PWM control technology, and Constant Current ( CC ) output control, welding parameters can be exactly controlled.
●AC TIG, DC TIG, Pulse TIG, and MMA welding methods. The welding methods, 2T and 4T operation modes of the welding torch switch, SPOT mode, and some items of welding parameters under different welding methods can be selected by using the touch button. These welding parameters can be adjusted by using the encoder. Excellent arc characteristics, good welding performance, high weld quality, and little spatter.
●Strong ability of the anti-fluctuating of the power supply voltage.
●Under AC TIG, DC TIG, and Pulse TIG, Lower heat input, small deformation after welding.
●Minimizing, lightness, it can be moved easily, and energy saving.
●With auto protection functions for over-heat.
●The welding material of the thin and medium plates can be welded.
●Be able to weld Aluminum and aluminum alloy, magnesium and magnesium alloys, carbon steel, stainless steel, alloy steel, copper and copper alloys, etc
●Using AC TIG welding, aluminum and aluminum alloy, magnesium and magnesium alloy and other materials can be welded, and the welding effect is good

Specifications

Factory Model# Machine Description Rated Input Voltage (V) Input Capacity (KVA) REAL Current Range (Amp) Welding ELECTORDE(mm) Rated Duty Cycle (%) Class of Insulation Case Protection Degree Feature & Accessories N.W. (kg) Item Size (WXDXH mm)
WSME-200X AC/DC TIG with pulse  230V 7.2 DC:10A/10.4V-200A/18V     AC:10A/10.4V-200A/18V      MMA: 20A/20.8V-160A/26.4V 1.6-4.0mm DC:@15% at 40℃  AC:@20% at 40℃  MMA:@25% at 40℃ H IP21S  air-cooling TIG torch with 4M welding cable, earth clamp with welding cable 2m   brush/hammer, regulator 10kg 500x220x380
