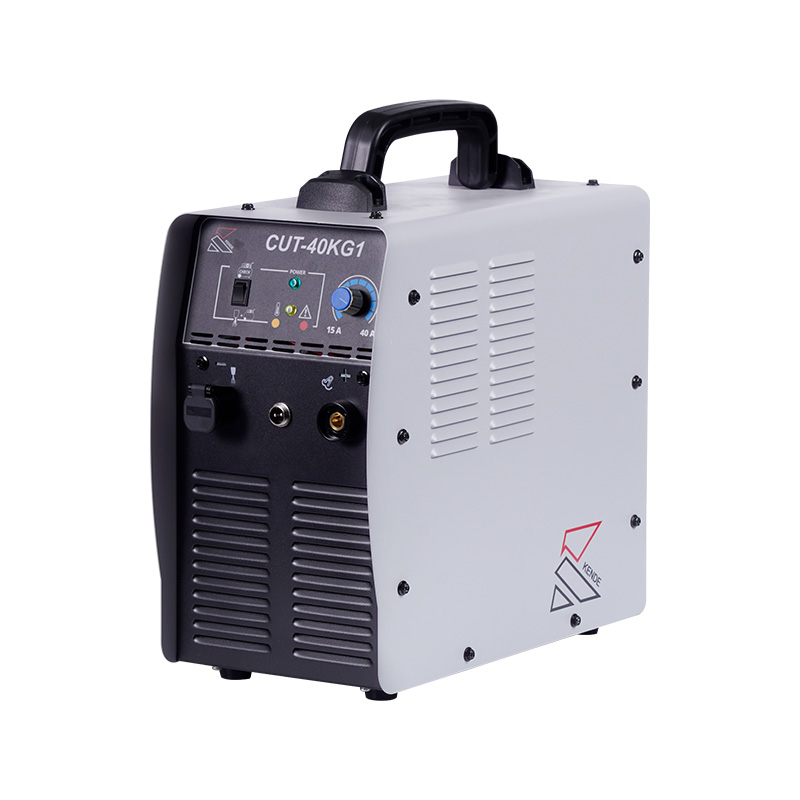

CUT-40KG1/CUT-40K Inverter Air Plasma Arc Cutting Machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Use advanced technologies such as 1GBT inverter, switching mode power supply, and PWM control technology, etc.

●lt can cut thin and medium plates of carbon steel, alloy steel, stainless steel, and other materials.

●The rated output current is 40A, Max.12mm mild steel can be cut. When the workpiece is thinner, the cutting speed is fast. High cutting efficiency, good cutting quality. Compared with oxygen and acetylene gas flame cutting, there are many advantages, such as the low cost of using explosions and other safety risks or dangers.

●Use a digital meter to display the cutting current. Easy for users to use

●The cutting arc is stable. Good cutting performance, and high quality.

●Multiple protective measures, high reliability. Strong resistance to power supply voltage changes.

●High efficiency and energy saving, small volume, lightweight, easy to move.

Specifications

Supplier Item No.

Anschluss (V)

Input Frequency(Hz)

Rated Input Power(KVA)

No Load Voltage(V)

Absicherung (A)

IGBT (ja/nein)

Isolationsklasse

 Schutzart(IP)

Einschaltdauer (A/%)

air flow of compressor

welding air pressure

power cable

machine size

ACC

CUT-40KG1

230

50

6.8

268V

15A/86V-40A/96V

yes

H

21S

0.2

110L/min 0.2Mpa

2.3bar

2meter, 3G2.5mm2,

Length 430mm Width 210mm Height (handle down + footrest) 405mm

2m * 4mm2 grounding cable with clamp and 2.5m cutting cable including cutting torch, removable roller guide at the top,

CUT-40K

230

50

6.8

268V

15A/86V-40A/96V

yes

H

21S

0.2

64L/min 0.4Mpa

2.2bar

2meter, 3G2.5mm2,

390x205x360

2m * 4mm2 grounding cable with clamp and 4m cutting cable including cutting torch, removable roller guide at the top,
