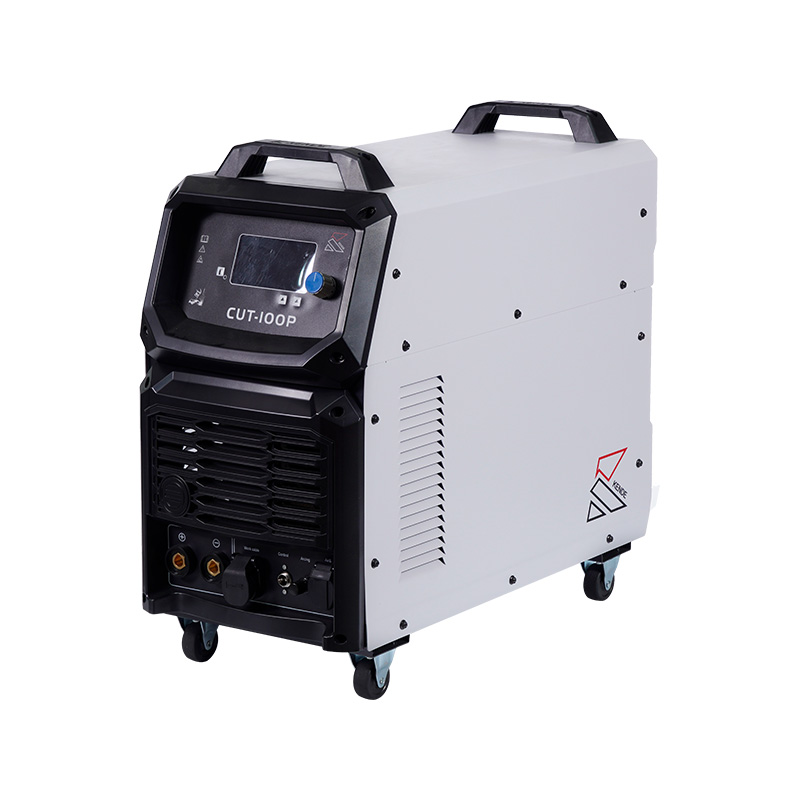

CUT-65P/CUT-80P/CUT-100P Digital Control IGBT Inverter Air Plasma Arc Cutting machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Use advanced technologies such as IGBT full-bridge inverter, Microprocessor Control Unit (MCU) digital control, LCD Screen Display, and PWM control technology, etc.
●Two use functions: MMA or Stick welding and Air Plasma Arc Cuina. because the product has multiple functions. it has many applications and uses
●When the cutting process is used, external or internal compressed air is required.
●Buying a cutting machine is equivalent to buying a number of equipment, for example, an MMA welding machine and a cutting machine high-performance price ratio, saving a lot of money for users.
●lt can weld or cut thin and medium plates of carbon steel, alloy steel, stainless steel, and other materials.
●For MMA or Stick welding, acidic and alkaline welding electrodes, cast iron electrodes, and stainless steel electrodes can be used.
●For Air Plasma Arc cutting, when the workpiece is thinner, the cutting speed is fast. High cutting efficiency, good cutting quality. Compared with oxygen and acetylene gas flame cutting, there are many advantages, such as low cost of use, no explosion, and other safety risks or dangers.
●The welding or cutting arc is stable. Small spatter, good welding or cutting performance, and high quality.
●Multiple protective measures, high reliability. Strong resistance to power supply voltage changes
●High efficiency and energy saving, small volume, lightweight, and easy to move.

Specifications

Supplier Item No.



Working Voltage(V)

No Load Voltage(V)

Rated Input Capacity(KVA)

Rated Welding Current (A)

Rated welding Voltage(V)

Rated Duty Cycle(%)

Insulation Class

IP Code

Cutting thickness（mm）

Diameter of welding rod(mm)

Length of welding cable

Thermo Overload Protection

Accessory included

machine size

CUT-65P

IGBT Inverter DC air plasma cutting machine

380V

280

9.3

CUT: 30-65  MMA: 20-170

CUT: 92 -106 MMA: 20.8-26.8

60

H

IP21S

0.1 - 20

1.6 - 4.0

3M

YES

4M CUTTING torch, earth clamp, welding cable, brush/hammer,

615*280*580

CUT-80P

IGBT Inverter DC air plasma cutting machine

380V

300

14.5

CUT:30-80 MMA: 20-200

CUT: 92 -112 MMA: 20.8-28

60

H

IP21S

0.1 - 25

1.6 - 5.0

3M

YES

4M CUTTING torch, earth clamp, welding cable, brush/hammer,

715*335655

CUT-100P

IGBT Inverter DC air plasma cutting machine

380V

300

17.5

CUT:30-100 MMA: 20-250

CUT: 92 -120 MMA: 20.8-30V

60

H

IP21S

0.1 - 35

1.6 - 5.0

3M

YES

4M CUTTING torch, earth clamp, welding cable, brush/hammer

715*355*655
