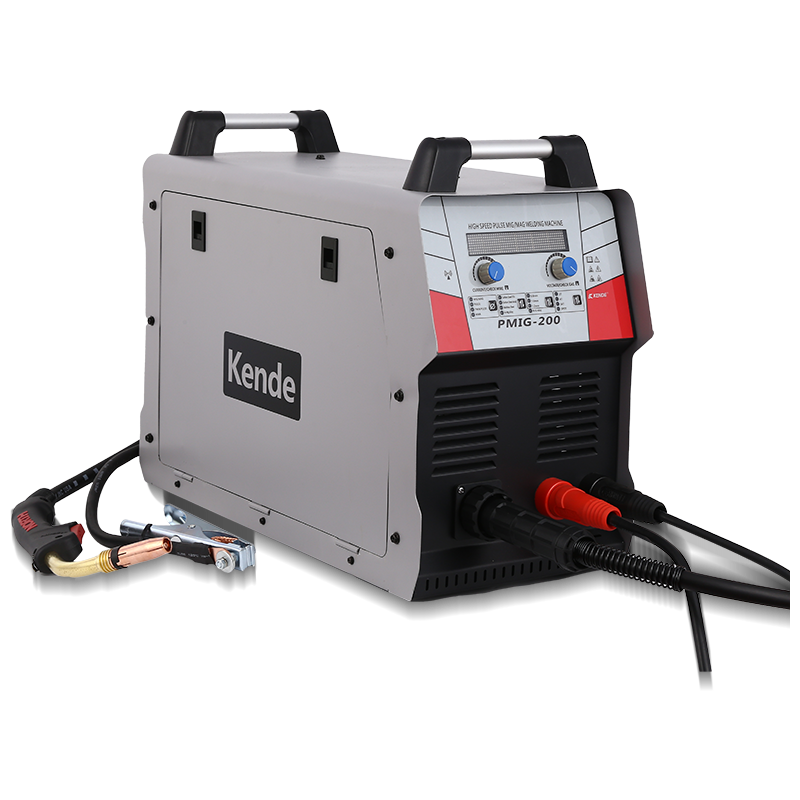

PMIG-200 Heavy Using Multi Function Singal pulse, double Pulse Aluminium MIG Gas welder 200 1-5kg wireInverter Welding Machine PM-200

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / MIG/MAG or GMAW / PMIG-200 Heavy Using Multi Function Singal pulse, double Pulse Aluminium MIG Gas welder 200 1-5kg wireInverter Welding Machine PM-200

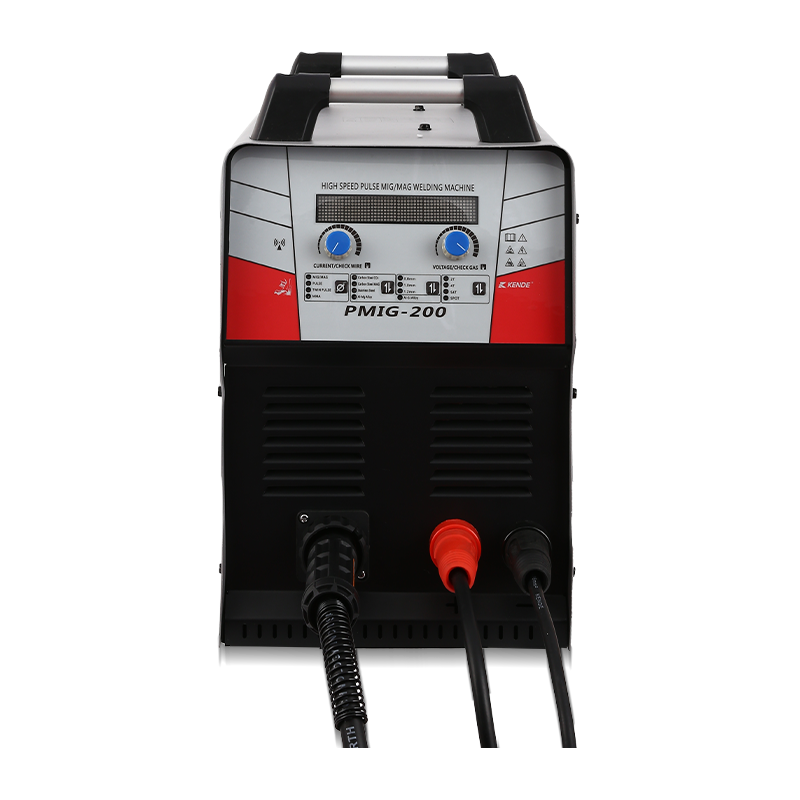

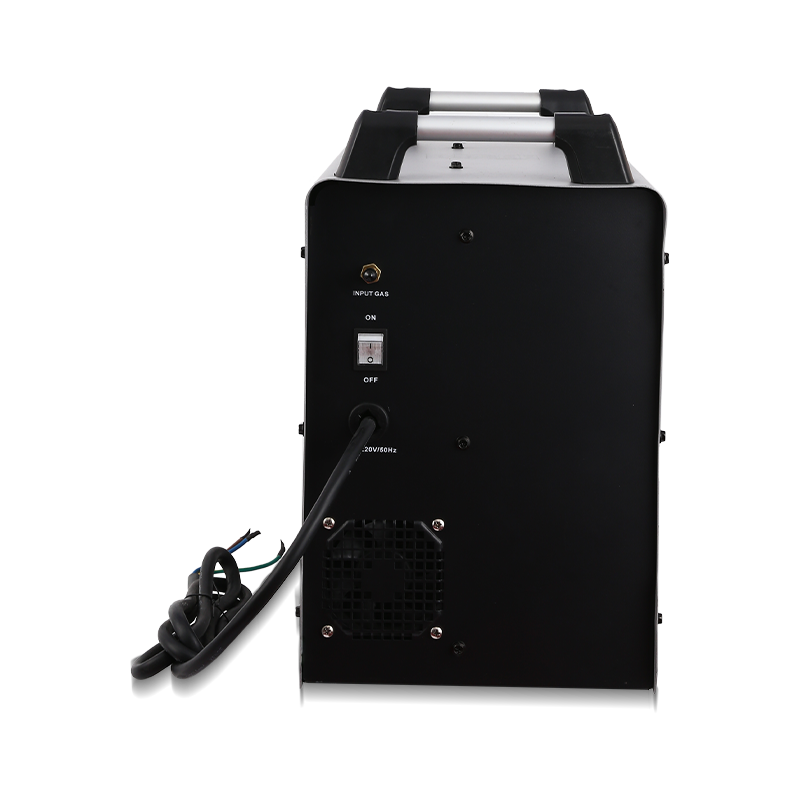

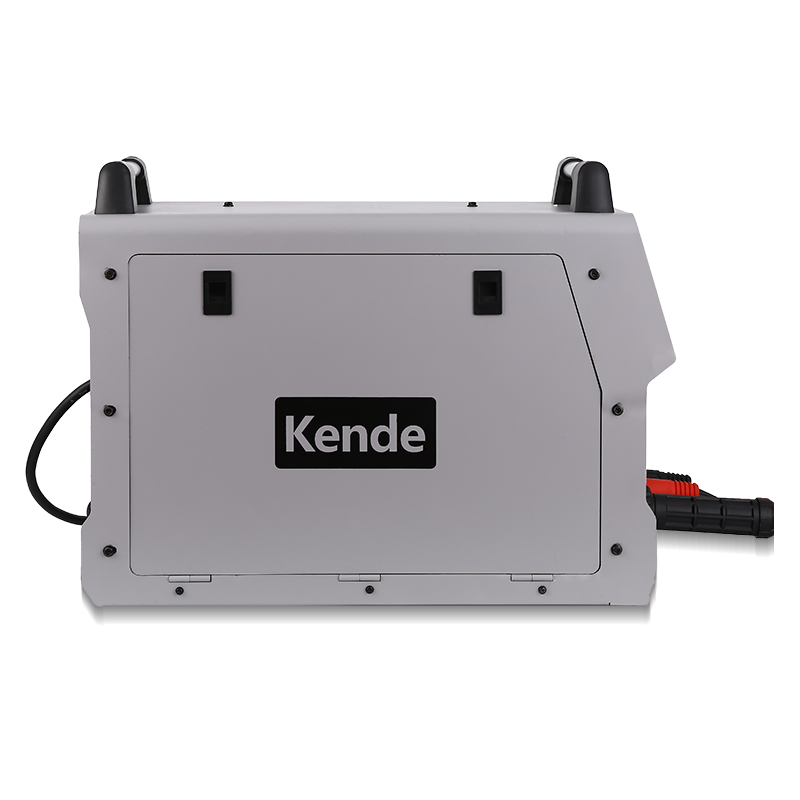

PMIG-200 Heavy Using Multi Function Singal pulse, double Pulse Aluminium MIG Gas welder 200 1-5kg wireInverter Welding Machine PM-200

Advanced inverter and microcomputer control technology.

High speed pulse MIG/MAG ; Single and Double pulse MIG/MAG, MIG/MAG and MMA, 4 Welding methods.

5 Welding materials. 4 Welding gun switch modes selection.

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Use powerful IGBT switched and advanced inverter control technology

●Use all digital , intelligent and PWM control technology , High-tech products.

●With gas shielded welding, pulse gas shielded welding, Twin pulse welding gas shielded welding and MMA function

●2T or4T , S4T and Spot welding control mould cab be slected.

●High weld quality, deep bath and strength.Lower heat input, small deformation after welding.

●Low power consumption, energy saving up to 30%

●With auto-protection functions of over-current and over-heat.

●Be able to weld all kinds of metal, such as carbon steel, alloy steel, stainless steel, aluminum alloy etc.

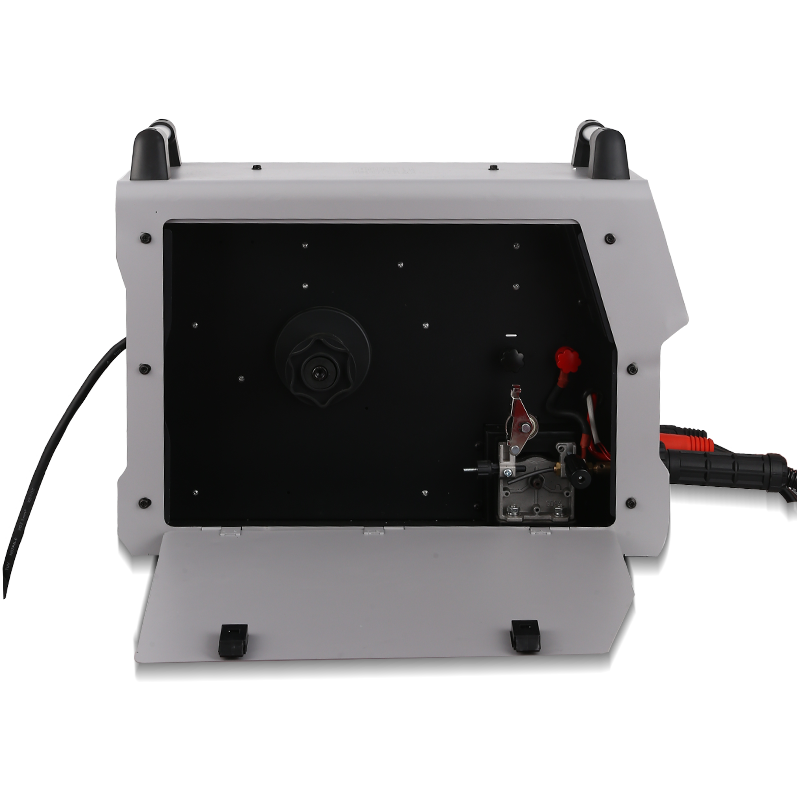

●Internal wire feeder, easy to use, suit for 5kgs welding wire.

Specifications

Rated
Supply
Voltage
Supply
Frequency
Rated
Input
Capacity
Rated
Supply
Current
No-Load
Voltage
Welding
Current
Range
Rated
Welding
Voltage
Rated
Duty
CYCLE
Usable
Wire
Efficiency Power
Factor
Degrees of
Protection
Class of
Insulation
Net
Weight
Machine Size
Technical Characteristics

V

Hz

KVA

A

V

A

V

%



mm

%

Cosφ

IP



kg

mm

PMIG-200 220/230 50/60 8.0 53 57 30-200 24 15 0.8-1.2 85 0.92 IP21S H 14 540L
225W
390H

KEEP IN TOUCH

SUBMIT
About Us
Zhejiang Kende Mechanical & Electrical Co., Ltd.
Zhejiang Kende Mechanical & Electrical Co., Ltd.

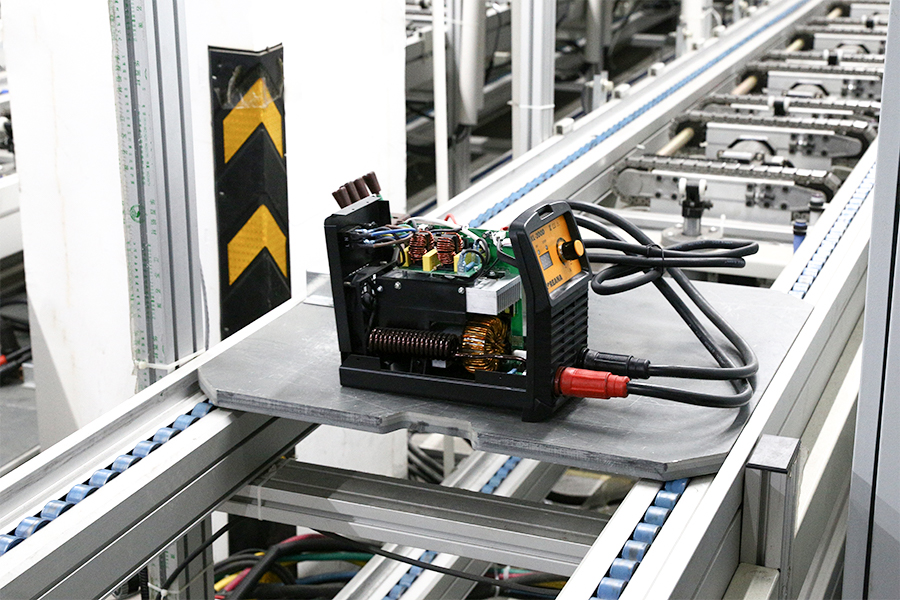

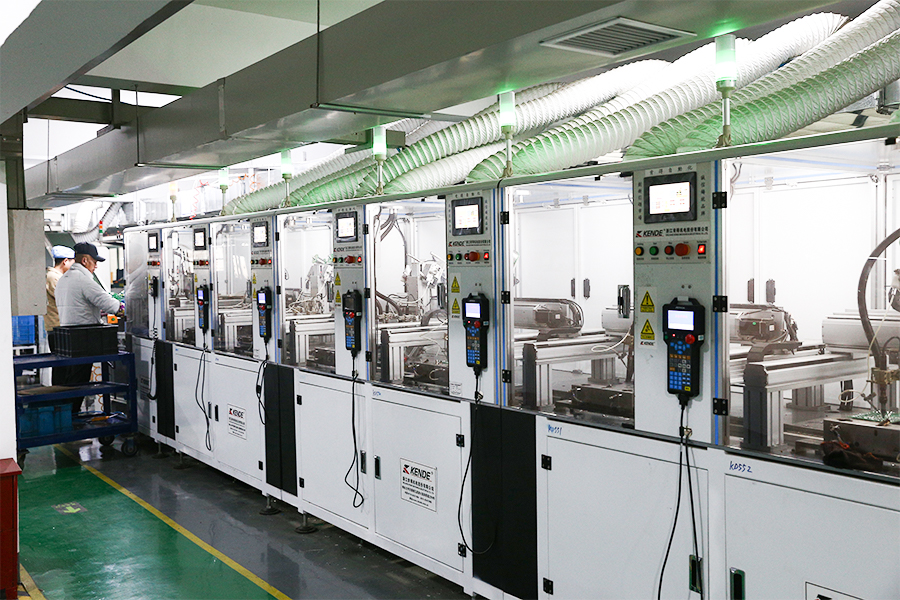

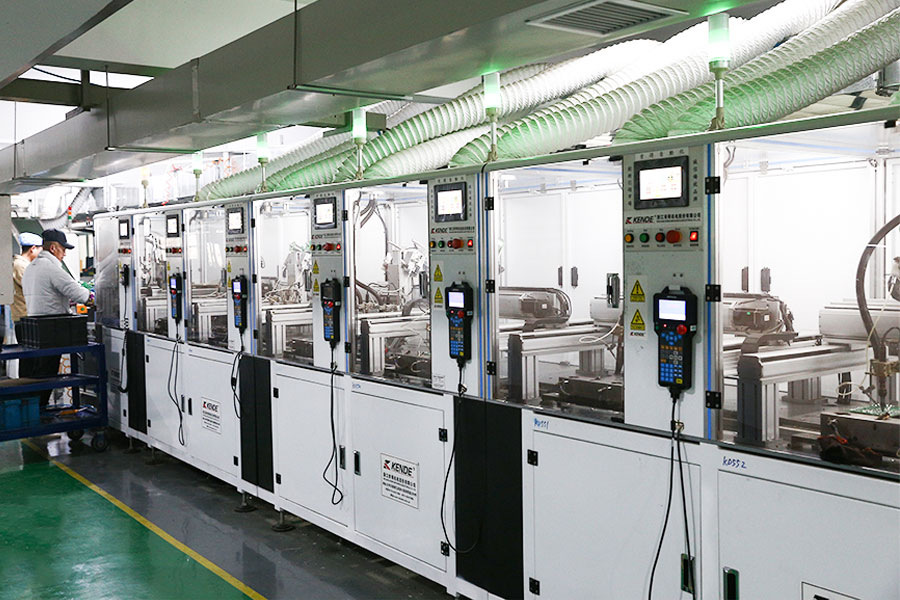

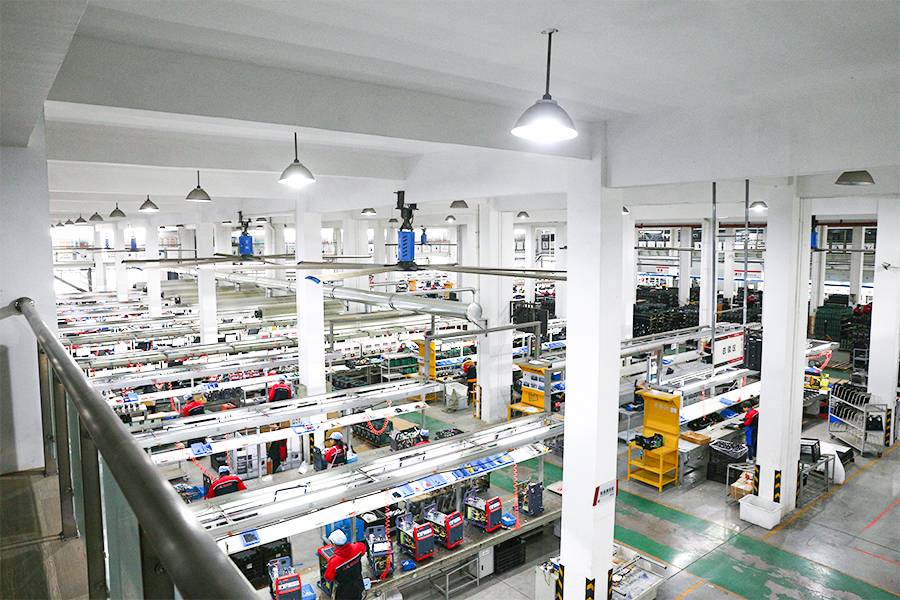

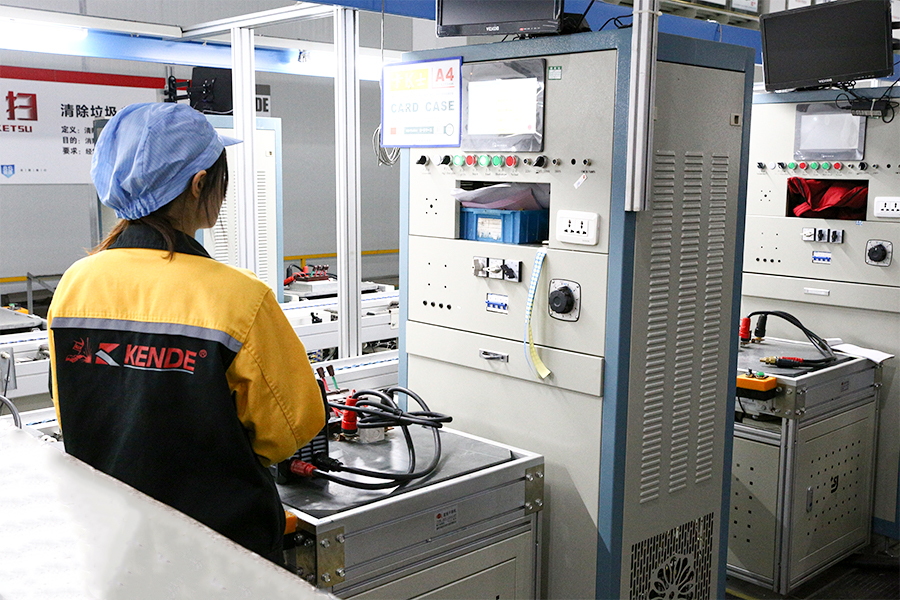

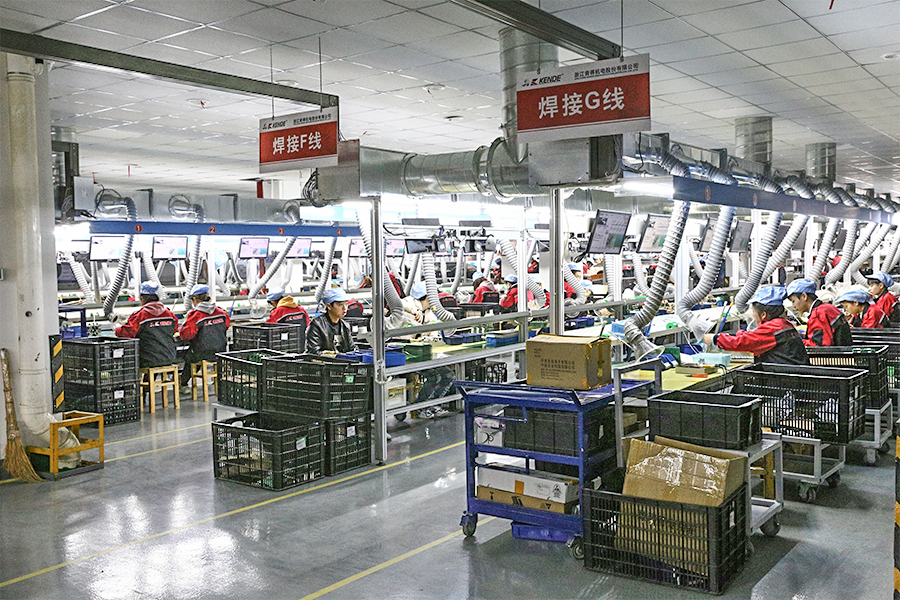

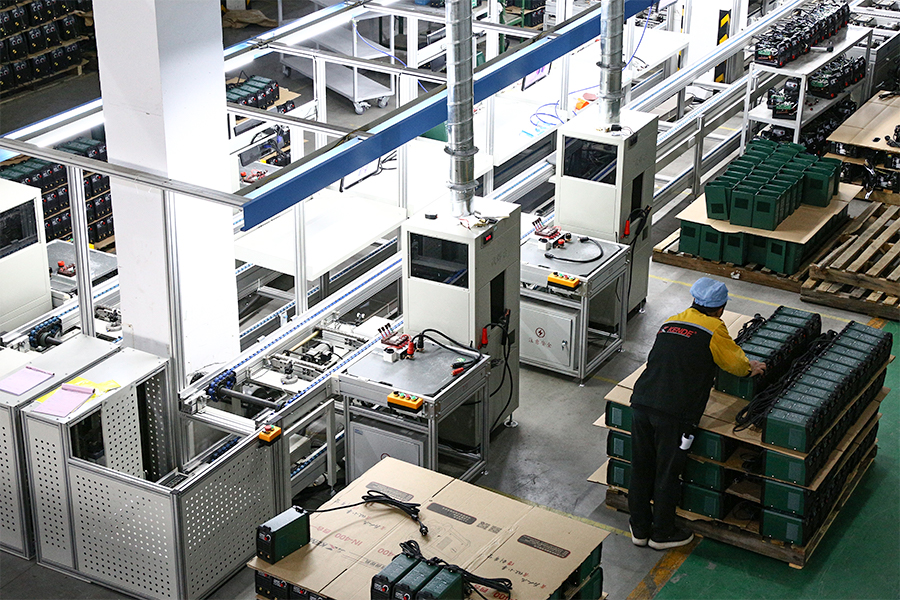

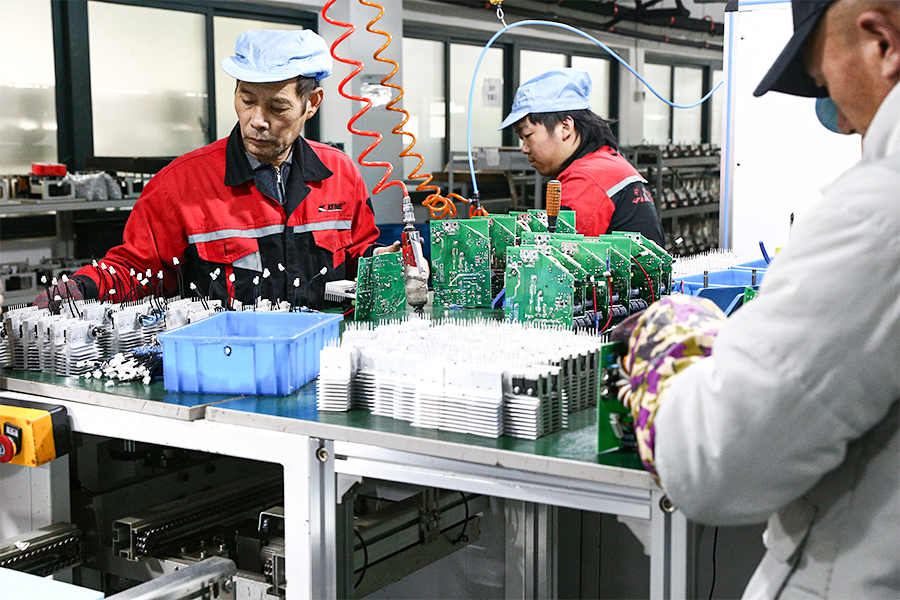

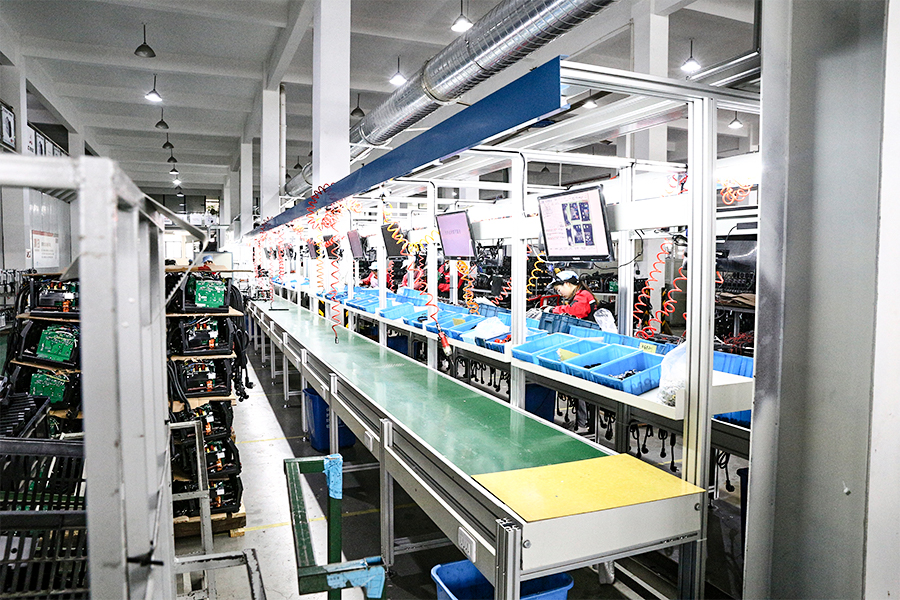

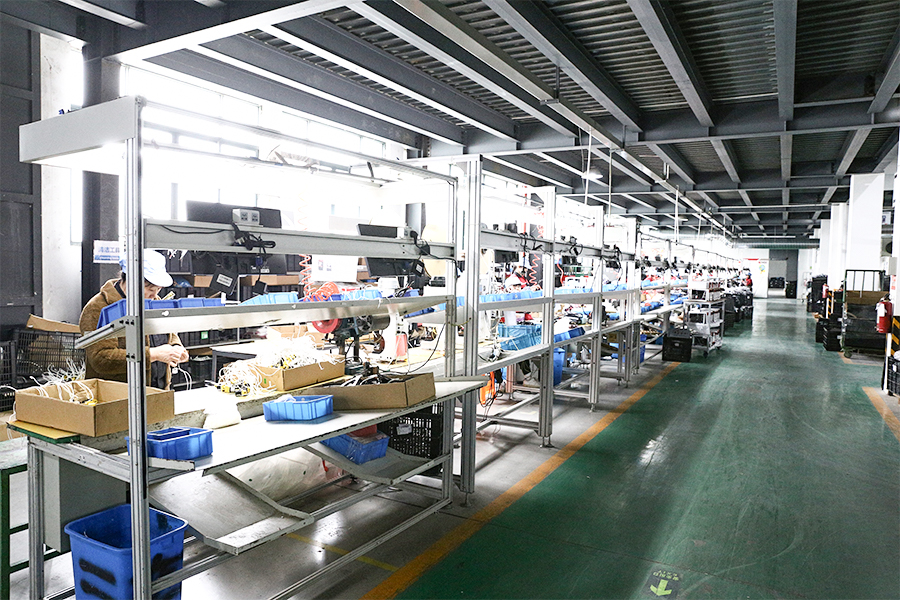

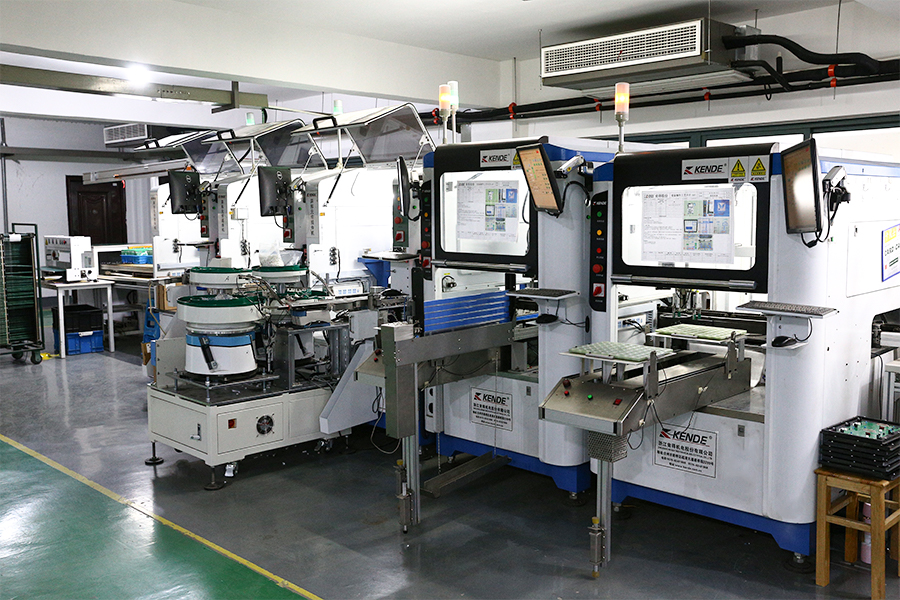

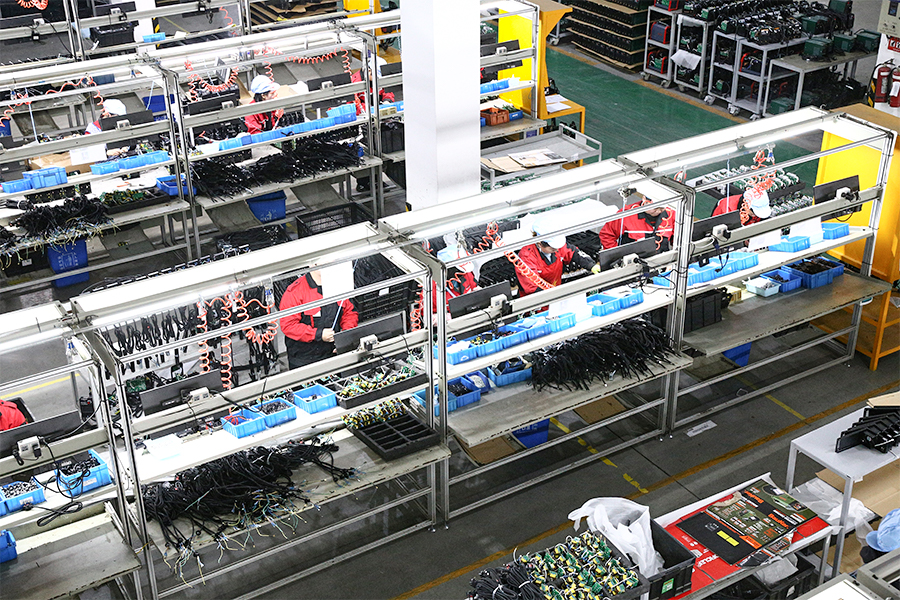

Kende strictly controls quality in every link from raw material purchase to product delivery, carries out strict quality supervision and controls the quality of purchased raw materials. In production links, Kende carries out the first-piece quality inspection system and guarantees consistent product quality. Kende attaches importance to production details. Before product delivery, Kende conducts a random check on products. Kende carries out the one-vote-down system and effectively prevents substandard products from entering the market.

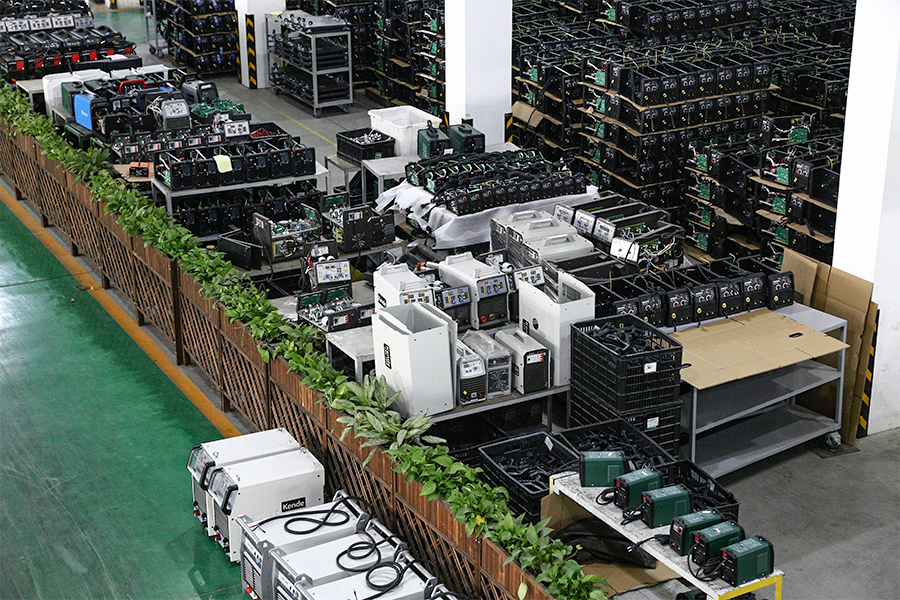

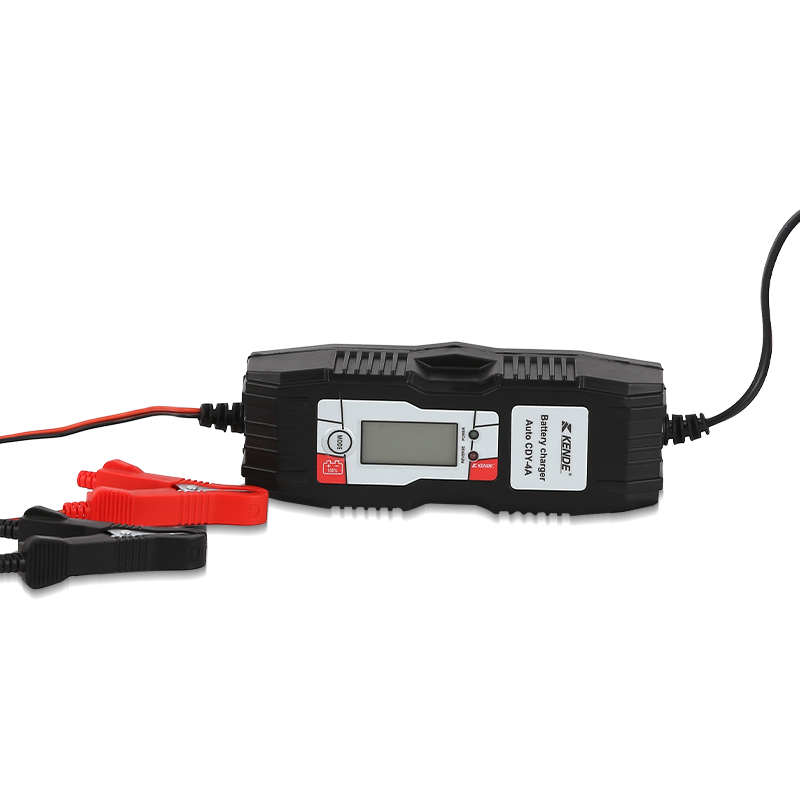

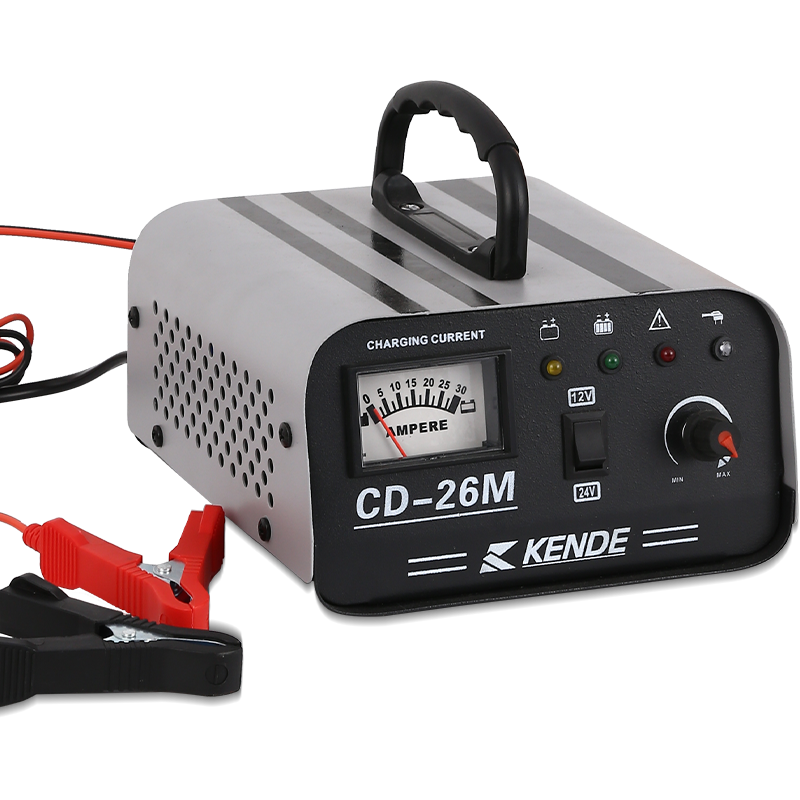

At present, Kende has many products. All kinds of welding machines, including Manual Metal Arc (MMA)or Stick welding machines, Tungsten Inert or argon Gas (TIG)shielded arc welding machines, MIG (Metal Inert Gas)/MAG (Metal Active Gas)or Gas shielded Metal Arc Welding (GMAW) machines, Submerged Arc Welding (SAW)machines, Resistance Spot welding machines, Laser welding machines, Laser cleaning machines, Robot welding system and Air Plasma Arc Cutting machines. All types of battery chargers, including 6V, 12V and 24V chargers.All types of heaters, including electric heaters, LPG fuel gas heaters and diesel and kerosene or fuel oil heaters.


Tungsten Inert Gas(TIG)arc welding machines include WSME AC/DC series TIG welding machines, WSM series TIG welding machines and WS series TIG welding machines. AC/DC and pulse current TIG welding processes can weld thin, medium-thick and thick materials, for example, carbon steel, stainless steel, copper brass, etc. Excellent arc characteristics, good welding performance and high quality.

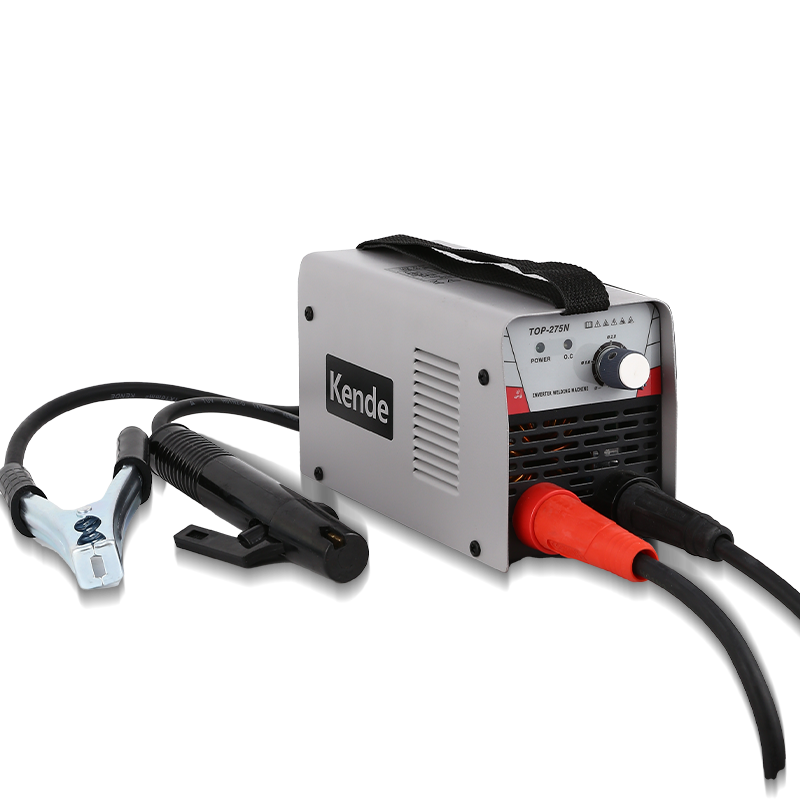

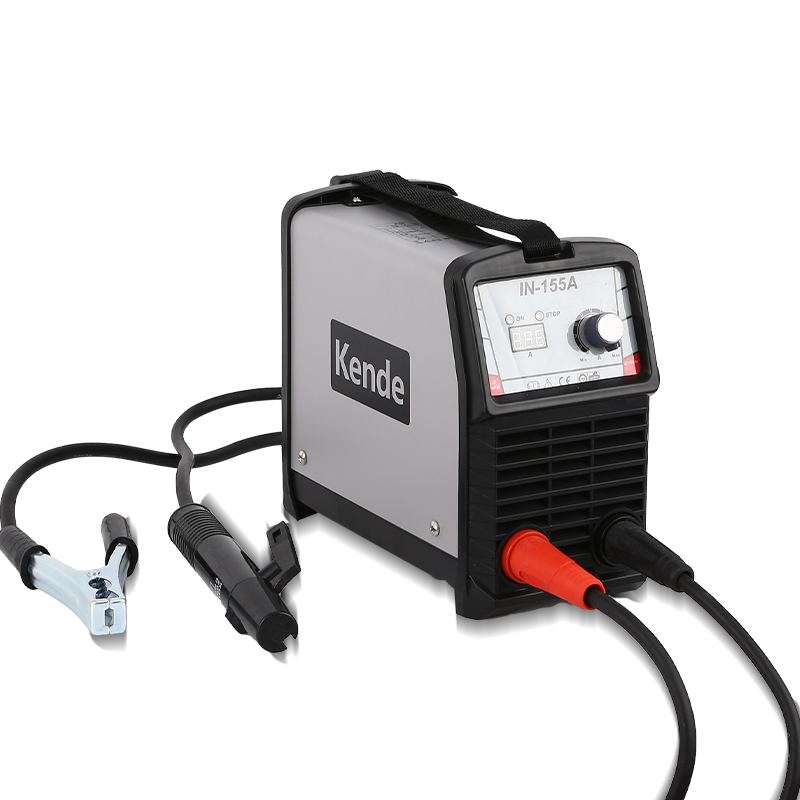

The representative products of manual metal arc (MMA) welding machines are the IN series welding machines, double-supply voltage series MMA welding machines, all supply voltage MMA series welding machines and the wide-voltage, waterproof and dust-proof high-performance welding machines, greatly improve the adaptability and service life of welding machines and can realize good welding performance and high quality.
