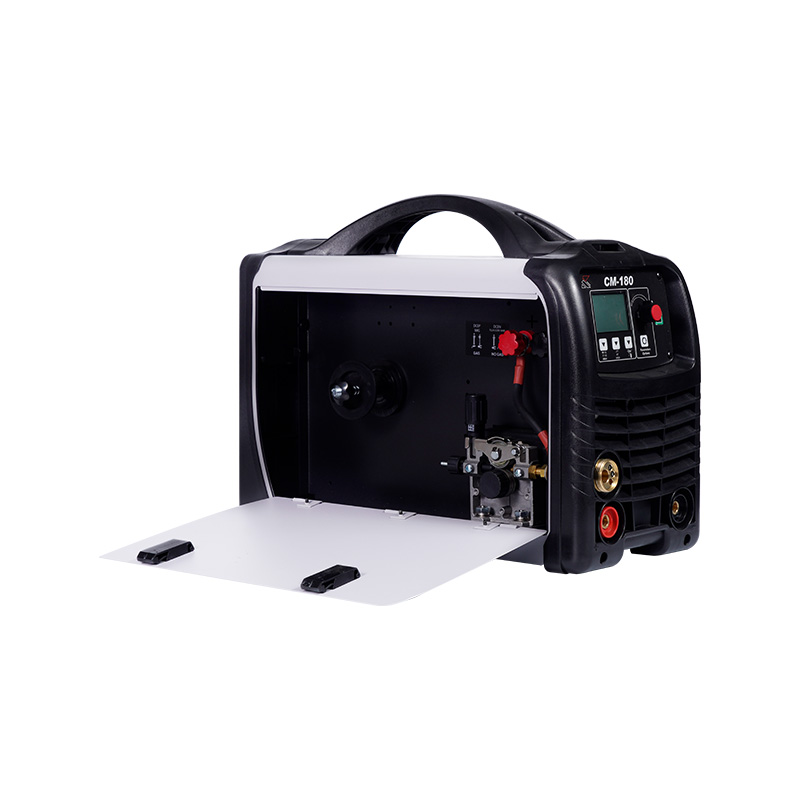

CM-180 KENDE portable IGBT inverter welder LCD MIG MAG MMA 2T 4T VRD multi-function Inverter GAS shield1-5kg wire Welding Machine

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / MIG/MAG or GMAW / CM-180 KENDE portable IGBT inverter welder LCD MIG MAG MMA 2T 4T VRD multi-function Inverter GAS shield1-5kg wire Welding Machine

CM-180 KENDE portable IGBT inverter welder LCD MIG MAG MMA 2T 4T VRD multi-function Inverter GAS shield1-5kg wire Welding Machine

Multiprocess welder handles MIG, Stick (DC), TIG (DC), or flux-core welding. Weld a wide range of materials with fast and easy set-up.Easy-to-use welding controls for trouble-free welding

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●110V and 230V Two kinds of power supply voltage.Automatically identify and control.

●The welding machine is made by using advanced MCU, IGBT Inverter and Switching mode power supply control technology.

●Three welding methods:MIG/MAG/No gas shielded Flux wire welding, MMA and TIG.VRD function under MMA welding.Single knob or SYNERGIC parameters controlling, 2T, 4T, Check gas and Check wire control function under MIG/MAG/No gas shielded Flux wire welding.

●Can weld thin and medium plate of carbon steel, alloy steel, stainless steel and other materials.

●The welding process can be exactly controlled by using MCU(Microprocessor Control Unit) control system, welding arc is very stable.

●Small spatter, good welding performance and weld of high quality.

●LCD screen display, touch button, encoder parameters adjustment, simple operation.

●Multiple protective measures, high reliability. strong resistance to power supply voltage changes.

●High efficiency and energy saving, small volume, light weight, easy to move and beautiful appearance.

Specifications

Rated
Supply
Voltage
Supply
Frequency
Rated
Input
Capacity
Rated
Supply
Current
No-Load
Voltage
Welding
Current
Range
Rated
Welding
Voltage
Rated
Duty
CYCLE
Usable
Wire
Efficiency Power
Factor
Degrees of
Protection
Class of
Insulation
Net
Weight
Machine Size
Technical Characteristics

V

Hz

KVA

A

V

A

V

%



mm

%

Cosφ

IP



kg

mm

CM-180 1~220/230V 50/60 7.1 32.7 53 20-180 23.0 60 0.6-1.0 85 0.9 IP21S H 12 520L
240W
380H
CM-200 1~220/230V 50/60 7.9 36 53 20-200 24.0 60 0.6-1.0 85 0.9 IP21S H 12.2 520L
240W
380H
CM-180D 1~110/230V 50/60 7.1 32.7 53 20-180 23.0 60 0.6-1.0 85 0.9 IP21S H 12 520L
240W
380H
CM-200D 1~110/230V 50/60 7.9 36 53 20-200 24.0 60 0.6-1.0 85 0.9 IP21S H 12.2 520L
240W
380H
