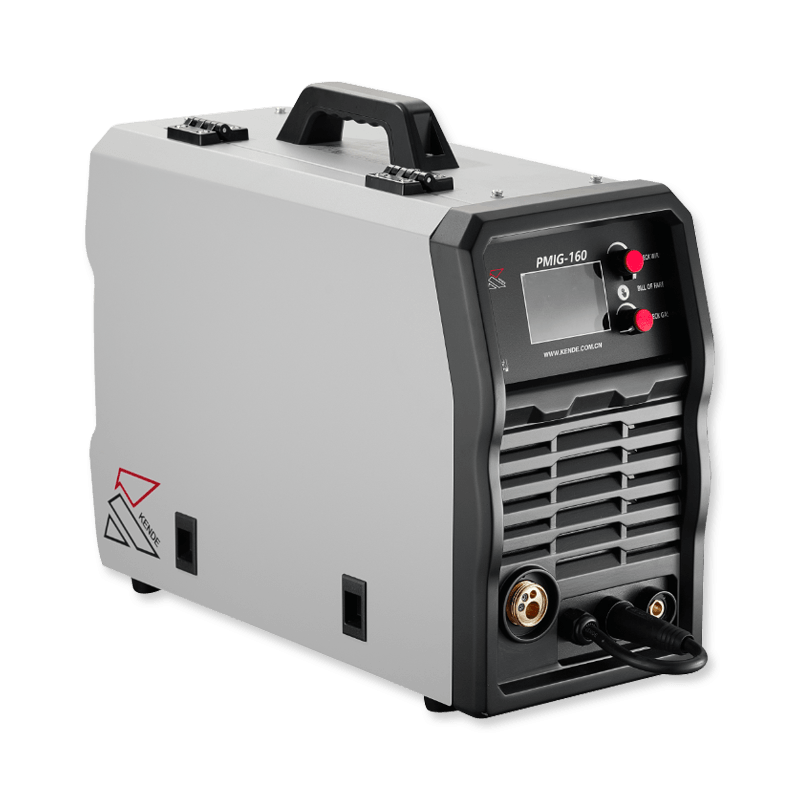

PMIG 160/PMIG 200 MCU Controlled Multi-function Gas Shielded Welding Machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Advanced Microprocessor Control Unit (MCU) digital control and IGBT inverter technology.

●LCD Screen Display. Touch button operation. Encoder parameters adjustment, simple operation.

●Five welding processes. are Pulse MIG, DC MIG/MAG, No gas shielded Flux wire welding (under MIG/MAG) and MMA methods can be used

●These parameters current wire feeding sneed nate thickness of the materials to he we did voltage. arc length inductance etc Can he selected

●A single knob or SYNERGIC parameters controlling under Pulse MIG/MIG/MAG/No gas shielded Flux wire welding

●Can weld carbon steel, alloy steel, stainless steel, and other materials.

●The welding processes can be exactly controlled by using an MCU control system, the welding arc is very stable.

●Small spatter, good welding performance, and high quality.

●Multiple protective measures, high reliability. strong resistance to power supply voltage changes.

●High efficiency and energy saving, small volume, lightweight, easy to move, and beautiful appearance.

●Single-phase 230V, 50Hz power supply.

●High current output.high duty cycle

Specifications

Model#

Description

Rated Input Voltage (V)

NO-LOAD VOLTAGE (V)

Input Capacity (KW)

CUTTING CURRENT (Amp)

Welding voltage range

Rated Duty Cycle (%)

Class of Insulation

FAN COOLED

THERMAL PROTECTION

MACHINE Dim (WXDXH mm)

weight

acc

PMIG 160

MIG, SINGLE PULSE, DOUBLE PULSE, MMA FUNCTION

230V

65

6.2

MIG:40A-160A
 MMA:20A-140A
TIG:20A-200A

MIG:16V-22V
 MMA:20.8V-25.6V
TIG:10.8V-18V

0.15

H

yes

yes

 (530*225*430)

13.5Kg

power cable 3G2.5㎡, MIG torch 2.5 m cable, earth cable 2m, regulator

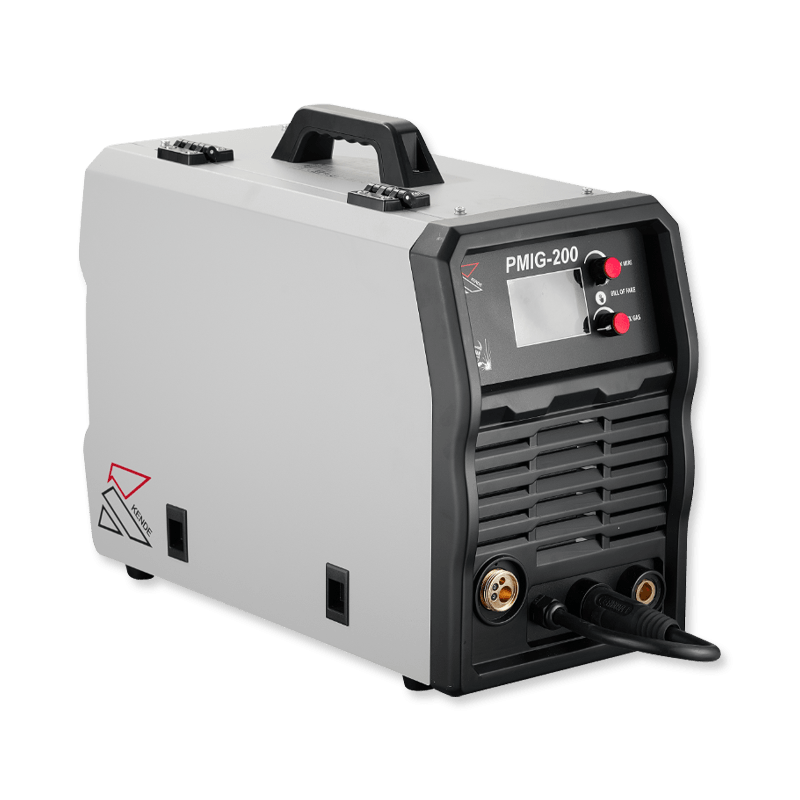

PMIG 200

MIG, SINGLE PULSE, DOUBLE PULSE, MMA FUNCTION

230V

71

8.8

MIG:  30A-200
MMA: 20A-180A
 TIG  10A --    200A

MIG:  15.5V-24                                                          MMA: 20.8V-27.2V
 TIG  10.4V --    18V

0.15

H

yes

yes

 (530*250*430)

15.5Kg

power cable3G2.5㎡, MIG torch 2.5 m cable , earth cable 2m, regulator
