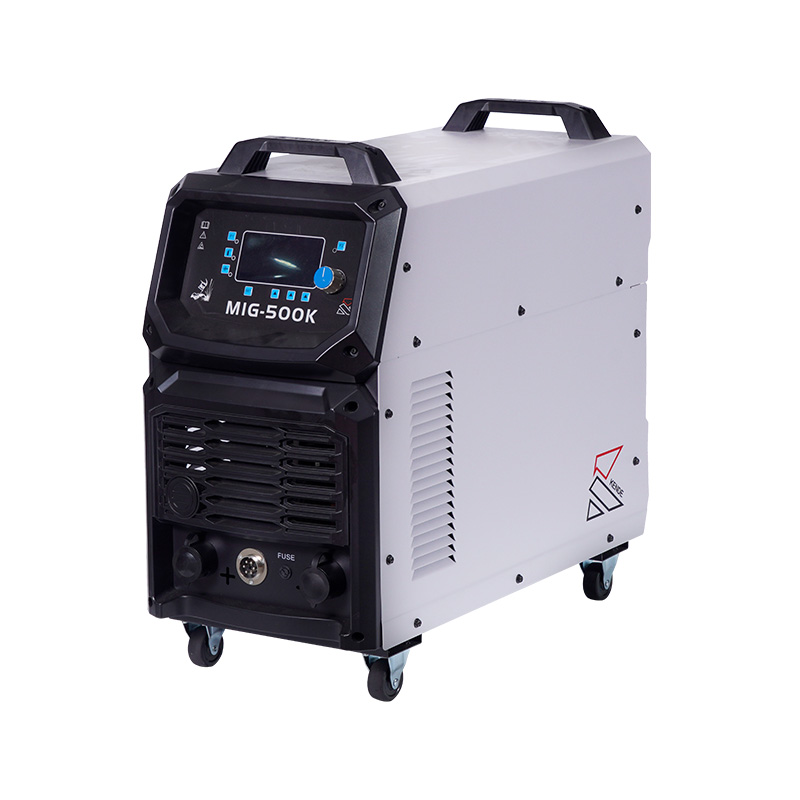

MIG-350K/MIG-500K MCU Controlled Multi-function Gas Shielded Welding Machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Advanced Microprocessor Control Unit (MCU) digital control and IGBT inverter technology.

●LCD Screen Display. Touch button operation. Encoder parameters adjustment, simple operation

●Five welding processes, that are MIG/MAG, No gas shielded Flux wire welding (under MIG/MAG), MMA, and Air Carbon Arc Cutting and Gouging (CAC-A) or Carbon Arc Air Gouging welding (under MMA) methods can be used.

●These parameters, current, wire feeding speed, the plate thickness of the materials to be welded, voltage, arc length, inductance, etc can be selected

●A single knob or SYNERGIC parameters controlling under MIG/MAG/No aas shielded Flux wire welding.

●Can weld carbon steel, alloy steel, stainless steel, and other materials.

●The welding processes can be exactly controlled by using an MCU control system, welding arc is very stable.

Specifications

Factory Model#

Machine Description

Type

Rated Input Voltage (V)

Input Capacity (KVA)

Current Range (Amp)

Welding Wire (mm)

Rated Duty Cycle (%)

Class of Insulation

Case Protection Degree

Feature & Accessories

N.W. (kg)

Item Size (WXDXH mm)

MIG-350K

Inverter MIG/MAG

IGBT Inverter

380V

15

MIG/MAG 40A/16V--350A/31.5V                      MMA 20A/20.8V -- 350A/34V

MIG/MAG 0.8-1.2mm MMA 1.6-5.0mm

60

H

IP 21

4m MB36, 35mm2 welded cable /5m control wire cable /5m 350A  welding torch /3m 300A  ground clamp with 35 mm2 square cable / flow meter /7m pipe, Wire Feeder Swivel, With Troley 3m Power Cable 4G2.5mm2 (+USD3.0)

23

625*275*580

MIG-500K

Inverter MIG/MAG

IGBT Inverter

380V

30

 MIG/MAG    60A/17V -- 500A/39V                                         MMA       20A/20.8V -- 480A/39.2V

MIG/MAG 1.0-1.6mm  MMA 1.6-5.0mm

60

H

IP 21

4m MB46, 50mm2 welded cable /5m control wire cable /5m 350A (500A) welding torch /3m  500A  ground clamp with 50 mm2 square cable / flow meter /7m pipe, Wire Feeder Swivel, With Troley                                  3m Power Cable 4G4mm2 (+USD5.35 )

41

710*330*650
