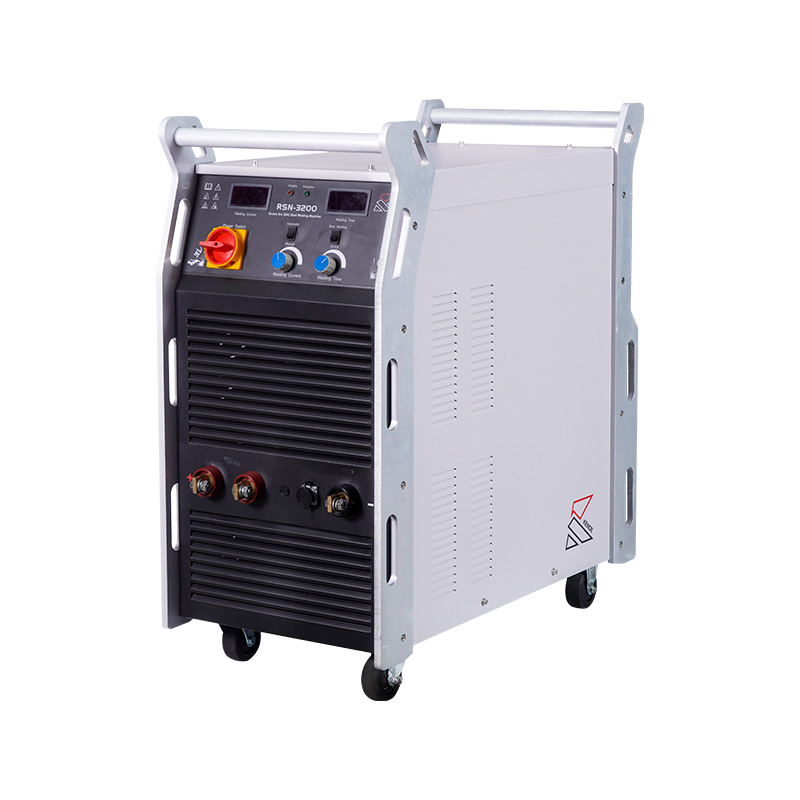

RSN-2500/3200 STUD WELDER

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / SPOT Welding / RSN-2500/3200 STUD WELDER

RSN-2500/3200 STUD WELDER

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

Technical characteristics:
• Advanced control technology. High efficiency and Energy saving.
• High duty cycle. The contactless point control technology is used in the main circuit, the reliability of the machine is high.
• Stud welding or Manual Metel Arc welding can be selected. The welding current and welding time can be set. The welding parameters are stable, which provides a reliable guarantee of the stable welding quality.
• The welding current and the welding time can be displayed, and have an over-heat protection LED indication.
• Short welding time, which can be set between 0 and 3 seconds. Heat Affect Zone of welding is small, so the post-welding deformation of the work-piece is very small.
• Suitable for welding of carbon steel, stainless steel, copper, aluminum and its alloy studs, the machine can be widely used. The diameter range of studs is Ф6~Ф25 (RSN-2500) /Ф30mm(RSN-3200).
• Fast welding speed, high quality of welding joint.
• Small volume, light weight, easy to move and beautiful appearance.
• Three phase 380V, 50 Hz power supply.

Specifications

Model RSN-2000 RSN-2500 RSN-2500
Supply Voltage(V) 380V±15% 380V±15% 380V±15%
Rated input power 50/60 50/60 50/60
lnstantaneous input maximum power (KVA) 76 95 122
Rated no-load voltage(V) 88 110 140.8
Welding current adjustment range(A) 200-2000 100 100
Max.output current(A) 2000 2500 3200
Rated load duration(%) 10 15 15
Weldable peg diameter(mm) 13-19 16-25 16-32
Weldable peg length(mm) ≤400 ≤400 ≤400
Efficiency(%) 80 80 80
Power factor(Cos) 0.95 0.95 0.95
Protection class(IP) 21S 21S 21S
lnsulation class F F F
Weight(Kg) 75 105 105
Dimension (LXWXH)(mm) 850X420X900 850X420X900 850X420X900
