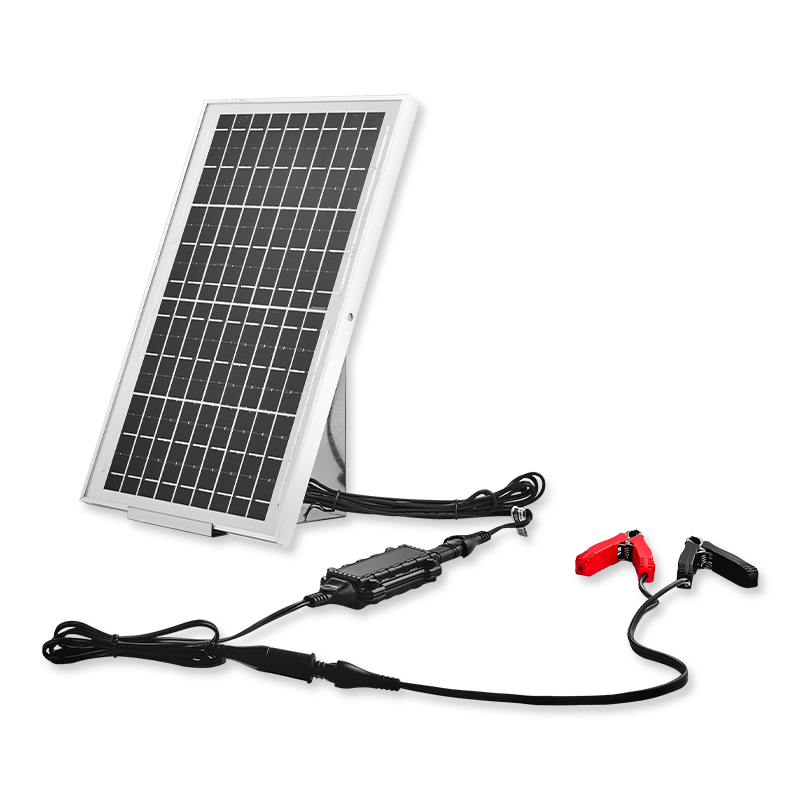

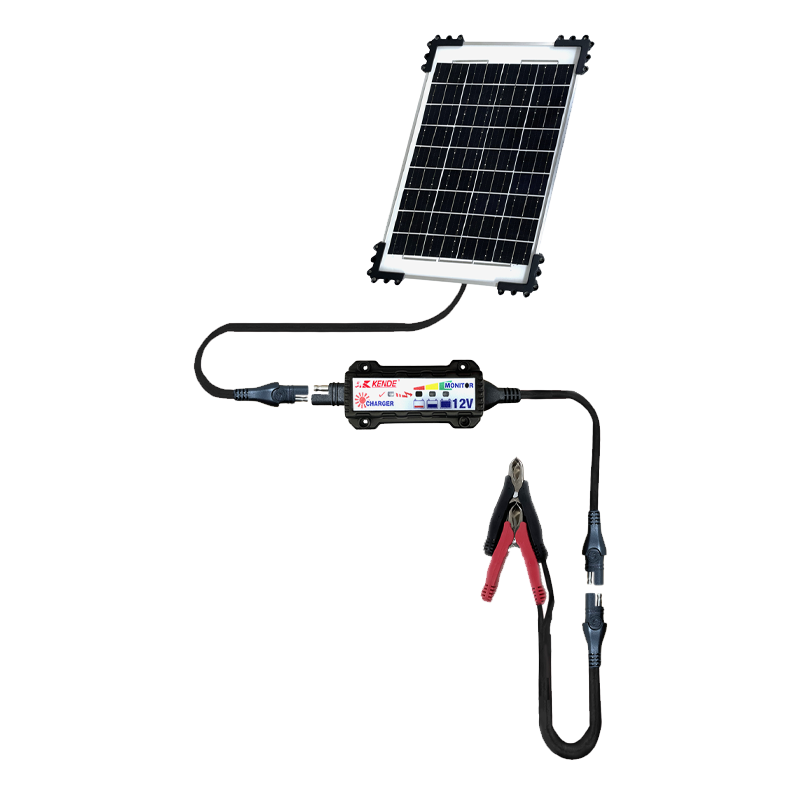

CD-10S/CD-20S/CD-30S/CD-40S/CD-50S/CD-60S/CD-80S Digital control battery chargers

EQUIPMENT Catalogue Patent NEW Products
Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / NEW Products / Battery Level / CD-10S/CD-20S/CD-30S/CD-40S/CD-50S/CD-60S/CD-80S Digital control battery chargers
  • Zhejiang Kende Mechanical & Electrical Co., Ltd.
  • Zhejiang Kende Mechanical & Electrical Co., Ltd.
  • Zhejiang Kende Mechanical & Electrical Co., Ltd.

CD-10S/CD-20S/CD-30S/CD-40S/CD-50S/CD-60S/CD-80S Digital control battery chargers

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●CD-10S/20/30S Solar charge controller and battery monitor for 12 lead-acid batteries, for solar panels from 10-30W. NPUT18V DC Solar panel.10-30W.OUTPUT:Rated voltage 12V DC, maximum current 0.83A/1.67A/2.5A.

●CD-40S/50S//8s Solr charge controller and battery monitor for 12V lead-acid batteries for solar panels from 4-80W. INPUT18V DC Solar pane.40-0WOUTPUT;Rated voltage 12V DC, maximum current 3.34A/4.17A/5A/7A

●Suitable for charging various batteries of 12V. such as STD, AGM, EFB GEL. etc.

●Configure with solar panels, use a solar power supply, save electric energy, and green environmental protection

●Use LED lamp for state indication, easy to observe, easy to operate.

●Advanced charging control technology. muli-sten chare modes The Solar controller automatically alternates between pulse and continuous current mode to always deliver the most efficient and fastest charge. The selected method of current delivery depends on the Condition of the battery and Power delivered by a solar panel.

●These battery chargers have an automatic safety feature that will stop charging if the battery has been inversely connected

Specifications

Model

Des.

Power of Solar panel

Output current

Des. of indicator

CD-10S

Solar charger

18V/10W

12VDC  0.83A Max

LED1 - solar input indicator :
With solar power input, when there is no output; LED1 is long on, No solar power input, LED1 lights off, When there is solar power input and output; LED1 flashes (the higher the current the faster it flashes)
 LED2 - Charging and battery level indicator 1,
 If the connected battery is low, the light is on. No solar input, the output is connected to the battery, and the voltage is less than 12.1V, 3 seconds a flash When there is solar power and the output battery voltage is detected to be less than 12.1V, the indicator on
LED3 - charging and battery power indicator 2,
Battery power display
No solar input, the output is connected to the battery, when the voltage is greater than 12.1V and less than 12.3V, LED2, and LED3 flash for 3 seconds at the same time
When the battery voltage is greater than or equal to 12.3V and less than 12.5V, LED3 flashes once every 3 seconds
When there is solar input and the output battery voltage is detected to be greater than 12.1V and less than 12.7V, LED3 will be on for a long time
LED4 - charging and battery power indicator 3
Battery power display
No solar input, the output is connected to the battery, when the voltage is greater than 12.1V and less than 12.3V, LED2, and LED3 flash for 3 seconds at the same time
When the battery voltage is greater than or equal to 12.3V and less than 12.5V, LED3 flashes once every 3 seconds
When there is solar input and the output battery voltage is detected to be greater than 12.7V, LED4 will be on for a long time

CD-20S

18V/20W

12VDC  1.67A Max

CD-30S

18V/30W

12VDC  2.5A Max

CD-40S

Solar charger

18V/40W

12VDC  3.34A Max

CD-50S

18V/50W

12VDC  4.17A Max

CD-60S

18V/60W

12VDC  5A Max

CD-80S

18V/80W

12VDC  6.67A Max
