KC-320B/420B/520B/620B Digital control battery chargers with jump start

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / NEW Products / Battery Level / KC-320B/420B/520B/620B Digital control battery chargers with jump start

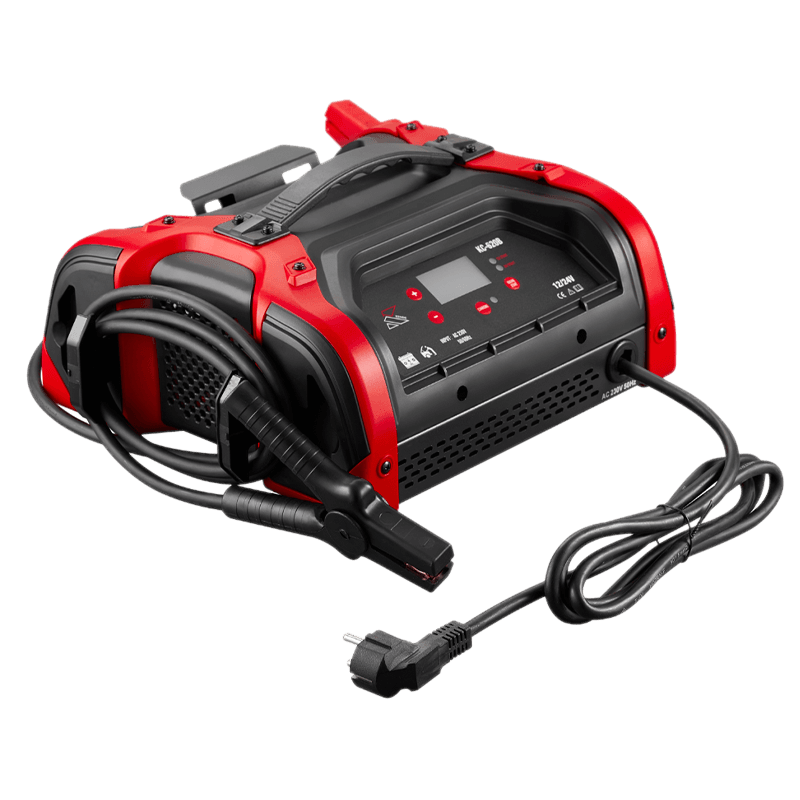

KC-320B/420B/520B/620B Digital control battery chargers with jump start

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Advanced microcomputer control technology, high-reliability LCD display.

●Jumpstart function

●Battery polarity reversal check, overheating, and short circuit protection

●Battery reconditioning function

●Suit with lead-acid, MFAGMGEL batteries

●6 charging modes, 1. 12V STD, 2. 12V STD +winter mode, 3.12VAGM, 4. 12V AGM + winter mode 5.24V STD, 6.24V STD + winter mode

●6 steps charging

Specifications

Model#

Description

Function

Rated Input Voltage (V)

 Charging Voltage

Start current (A)

Current Range (A)

Degrees of protection

Reference capacity(AH min/max)

Power cable

ACC

MACHINE SIZE(MM)

weight

KC-320B

Inverter Charger (jump-start Function)

1. jump start function
2. Battery polarity reversal check
3. winter model
4. overheat and Short circuit protection
5. 6setp charging

230V

12/24

12V 200Amax
 24V 200Amax
5s ON, 180s OFF.

Fast charge:   30Amax, 5Amin.
Charging current:  5A~30A

IP20

20Ah- 450Ah

Cable 3 x 0, 75 mm²; 1, 8 m length

Starter cable 2 x 1, 5m, 16mm²

 310mm*310mm*170mm

 4.5KG

KC-420B

230V

12/24

12V 250Amax
24V 250Amax
5s ON, 180s OFF.

Fast charge:   40Amax, 5Amin.
Charging current:  5A~40A

20Ah- 600Ah

KC-520B

230V

12/24

12V 300Amax    24V 300Amax
5s ON, 180s OFF.

Fast charge:   50Amax, 5Amin.
Charging current:  5A~50A

20Ah- 750Ah

4.7KG

KC-620B

230V

12/24

12V 350Amax    24V 300Amax
5s ON, 180s OFF.

Fast charge:   60Amax, 5Amin.
Charging current:  5A~60A

20Ah- 900Ah
