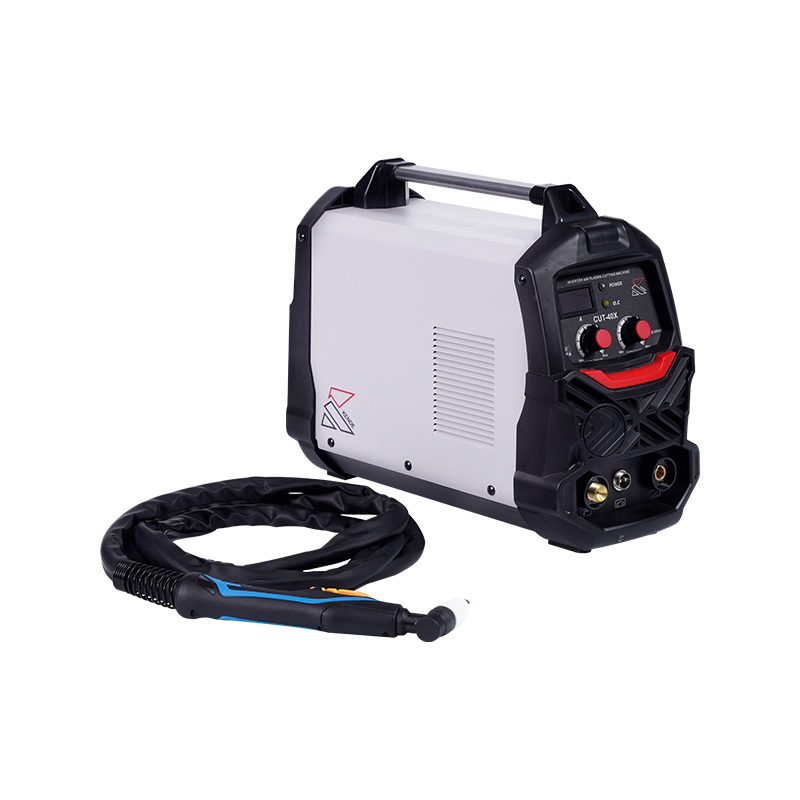

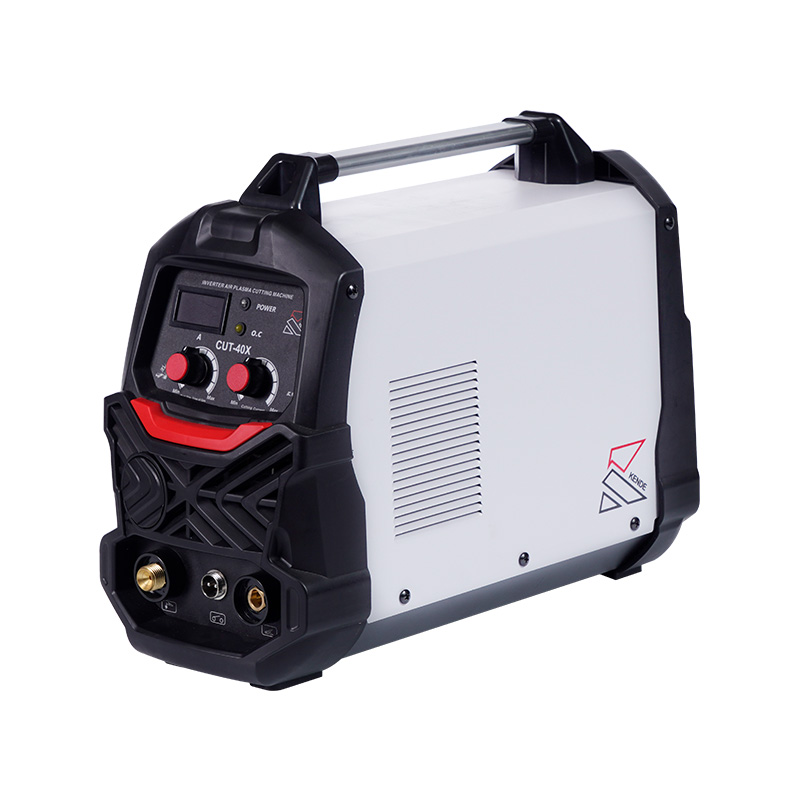

CUT-30X/CUT-40X lnverter Air Plasma Arc Cutting Machines

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / NEW Products / CUT / CUT-30X/CUT-40X lnverter Air Plasma Arc Cutting Machines

CUT-30X/CUT-40X lnverter Air Plasma Arc Cutting Machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●Use advanced technologies such as IGBT inverter, switching mode power supply, and PWM control technology, etc.

●it can cut thin and medium plates of carbon steel, alloy steel, stainless steel, and other materials.

●lf the rated output current is 40A, Max.12mm mild steel can be cut. When the workpiece is thinner, the cutting speed is fast. Hich cutting efficiency, and good cutting quality. Compared with oxygen and acetylene gas flame cutting, there are many advantages, such as low cost of use, no explosion, and other safety risks or dangers

●Use a digital meter to display the cutting current. Easy for users to use

●The cutting arc is stable. Good cutting performance, and high quality.

●Multiple protective measures, high reliability. Strong resistance to power supply voltage changes

●High efficiency and energy saving, small volume light weight, easy to move.

Specifications

Model#

Description

Rated Input Voltage (V)

NO-LOAD VOLTAGE (V)

Input Capacity (KW)

CUTTING CURRENT (Amp)

Working plasma gas pressure

Rated Duty Cycle (%)

cutting thickness

Class of Insulation

FAN COOLED

THERMAL PROTECTION

N.W. (kg)

PACKING

machine size

acc

CUT-30X

Single-phase, portable, fan-cooled, thermostatic protection

230V

280V

6.6

15A/86V-30A/92V

0.1-0.45MPa

0.3

8mm

H

yes

yes

7.0KG

Color box

430*185*315

power cable:2m, cutting torch 3m cable, earth cable 2m, regulator

CUT-40X

Single-phase, portable, fan-cooled, thermostatic protection

230V

280V

6.6

15A/86V-40A/96V

0.1-0.45MPa

0.4

12mm

H

yes

yes

7.0KG

Color box

430*185*315

power cable:2m, cutting torch 3m cable, earth cable 2m, regulator
