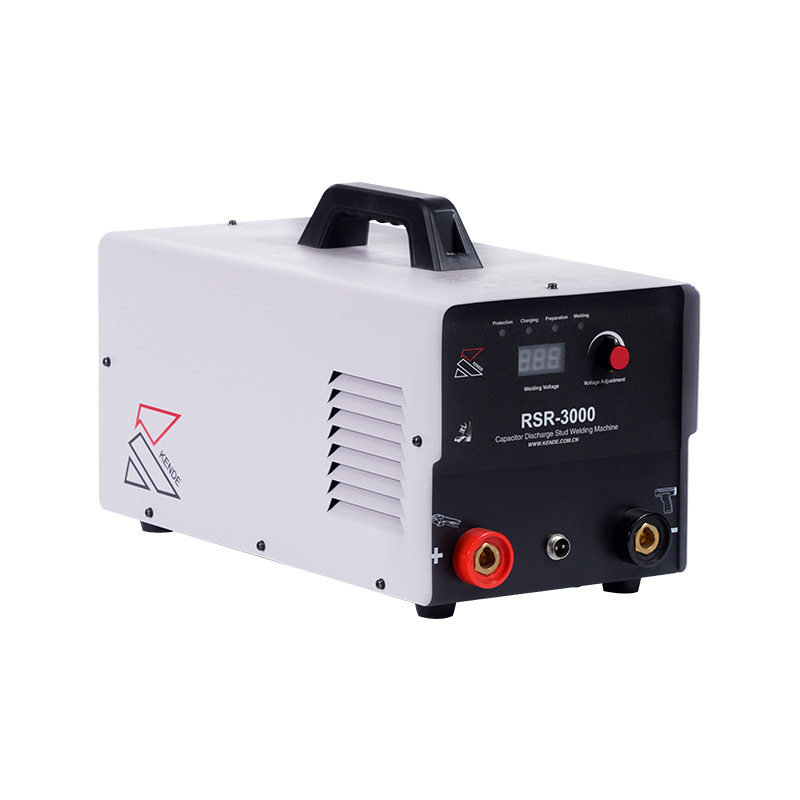

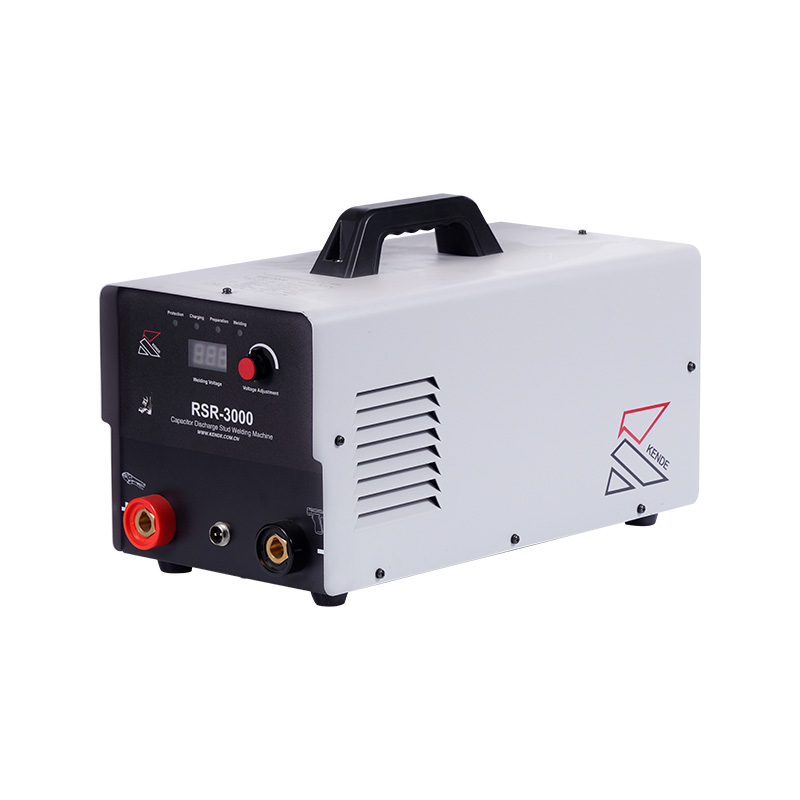

RSR-2000/3000/4000/5000 Series Capacitive Energy Storage Stud Welding Machines
Home / Product / NEW Products / Capacitor Storage Studs / RSR-2000/3000/4000/5000 Series Capacitive Energy Storage Stud Welding Machines
Technical Characteristics
●Advanced control technology and Current-limiting charging technology.
●Digital Voltage Display. There are protection, charging, ready, and welding LED indicator lights. The voltage parameter can be adjusted, easy to operate.
●The charging voltage is stable, which provides a reliable guarantee of stable welding quality.
●Charging and discharge interlock, with capacitor over-voltage protection, to ensure the safety of the welding operator and equipment.
●Milisecond level welding time. The heat Affect Zone of welding is small, so the post-welding deformation of the workpiece is very small. Suitable for welding sheet plates.
●Suitable for welding carbon steel, stainless steel, copper, aluminum, and its alloy studs, the machine can be widely used
●Good welding performance and high quality.
●High efficiency, small volume, lightweight, easy to move, and beautiful appearance.
Specifications
|
Ordinary model (VA) |
Power Capacity (VA) |
Rated stored energy (J) |
Capacitor voltage regulation range (V) |
Diameter of weldable stud (mm) |
Welding productivity (pcs/min or min) |
Overall dimensions (L×W×H) (mm) |
Weight (Kg) |
Configuration |
|
|
Carbon steel, stainless steel |
Copper, aluminum and their alloys |
||||||||
|
RSR- 2000 |
≤750 |
1000 |
35~100 |
2~4 |
3~4 |
12~6 |
453×223×230 |
15.85 |
Capacitor discharge stud welding torch (with wire 5 m, 10 square), 2-core control cable 1 * 2-core, 5 m, copper collet M2/3, ground 16 square 2 m, grounding clamp 300 A, two-core aviation plugs |
|
RSR3000 |
≤1000 |
1300 |
35~200 |
4~6 |
3~6 |
10~5 |
453×223×230 |
17.8 |
Capacitor discharge stud welding torch (with wire 5 m, 16 sq. ft.), 2-core control cable 1 * 2-core, 5 m, copper collet M3/4/5, ground 16 sq. ft. 2 m, ground clamp 300 A, 2-pole aviation plugs |
|
RSR4000 |
≤1250 |
1600 |
35~200 |
4~8 |
3~6 |
12~6 |
453×223×230 |
19.5 |
Capacitor discharge stud gun (with wire 5 m, 25 sq. ft.), 2-core control cable 1 * 2-core, 5 m, copper collet M4/5/6, ground 25 sq. ft. 2 m, grounding clamp 300 A, 2-pole aviation plugs |
|
RSR5000 |
≤1500 |
2000 |
35~200 |
4~8 |
3~8 |
10~5 |
490×223×270 |
21.8 |
Capacitor discharge stud gun (with wire 5 m, 25 sq. ft.), 2-core control cable 1 * 2-core, 5 m, copper collet M6/8/10, ground 25 sq. ft. 2 m, grounding clamp 300 A, 2-pole aviation plugs |
