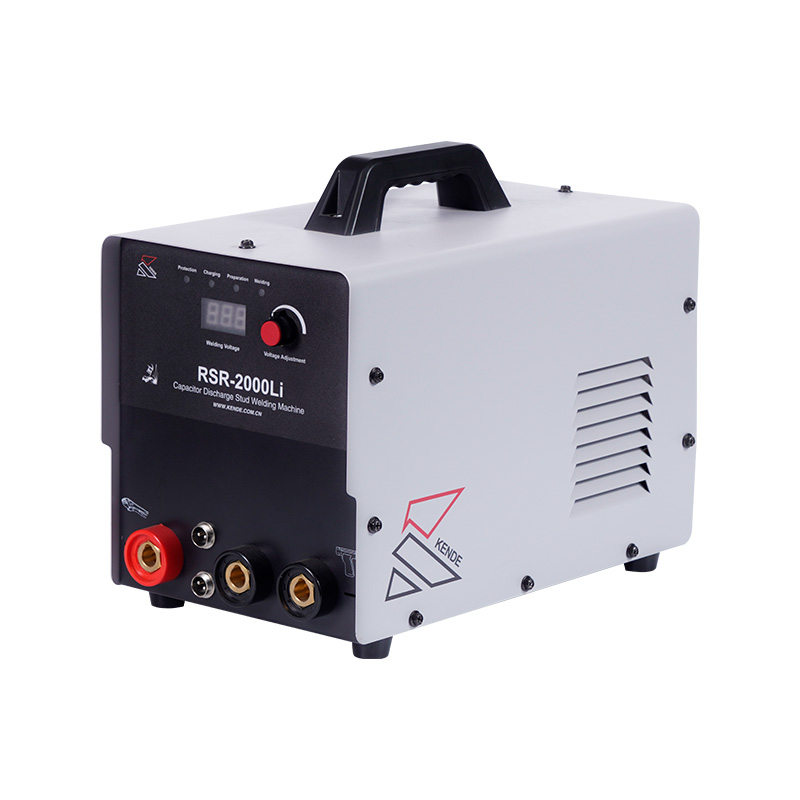

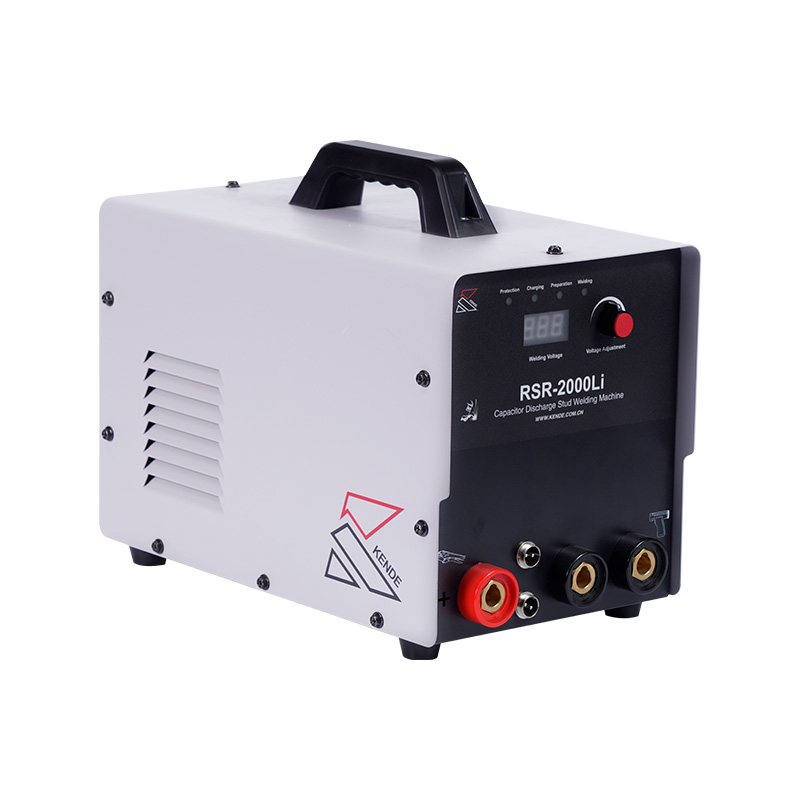

RSR-2000LI/3000LI/2000LI/3000LI Single phase, portable, fan-cooled, thermostatic protection
Home / Product / NEW Products / Capacitor Storage Studs / RSR-2000LI/3000LI/2000LI/3000LI Single phase, portable, fan-cooled, thermostatic protection
Technical Characteristics
●Advanced control technology and Current-limiting charging technology.
●With Lithium Battery. and can be charged. Not connected to the power supply. these welding machines can be used
●Two welding torches can be used that is two operators can use the welding machine to improve the welding efficiency.
●Digita Voltage Display. There are protection, charging, ready, and welding LED indicator lights. The voltage parameter can be adjusted, easy to operate
●The charging voltage is stable, which provides a reliable guarantee of stable welding quality.
●Charging and discharging interlock, with capacitor over-voltage protection, to ensure the safety of the welding operator and equipment.
●Millisecond level welding time. The heat Affect Zone of welding is sal, so the post-welding deformation of the workpiece is very small. Suitable for welding sheet plates.
●Suitable for welding carbon steel, stainless steel, copper, aluminum, and its alloy studs, the machine can be widely used.
●Good welding performance and high quality.
●High efficiency small volume, lightweight, easy to move, and beautiful appearance
Specifications
|
Lithium (VA) |
Rated stored energy (J) |
Capacitor voltage regulation range (V) |
Diameter of weldable stud (mm) |
Welding productivity (pcs/min) |
Overall dimensions (L×W×H) (mm) |
Weight (Kg) |
Configure |
|
|
Carbon steel, stainless steel |
Copper, aluminum, and their alloys |
|||||||
|
RSR-2000LI |
1000 |
35~100 |
2~4 |
3~4 |
12~6 |
453×223×230 |
15.85 |
Capacitor discharge stud welding gun (with wire 5 m, 16 square), core control cable 1 * 2 core, 5 m, copper clevis M2/3, ground 16 square 2 m, ground clamp 300A, two-core aviation plugs |
|
RSR-3000LI |
1300 |
35~200 |
4~6 |
3~6 |
10~5 |
453×223×230 |
17.8 |
Capacitor discharge stud welding gun (with line 5 m, 16 square), core control cable 1 * 2 core, 5 m, copper clevis M3/4/5, ground 16 square 2 m, ground clamp 300A, two-pole aviation plugs |
|
RSR2000LI |
1600 |
35~200 |
4~8 |
3~6 |
12~6 |
453×223×230 |
19.5 |
Capacitor discharge stud welding gun (with line 5 m, 16 square), core control cable 1 * 2 core, 5 m, copper clevis M4/5/6, ground 25 square 2 m, ground clamp 300A, two-prong aviation plugs |
|
RSR-3000LI |
2000 |
35~200 |
4~8 |
3~8 |
10~5 |
490×223×270 |
21.8 |
Capacitor discharge stud gun (with line 5 m, 16 square), core control cable 1 * 2 core, 5 m, copper clevis M6/8/10, ground 25 square 2 m, ground clamp 300A, two-prong aviation plugs |
