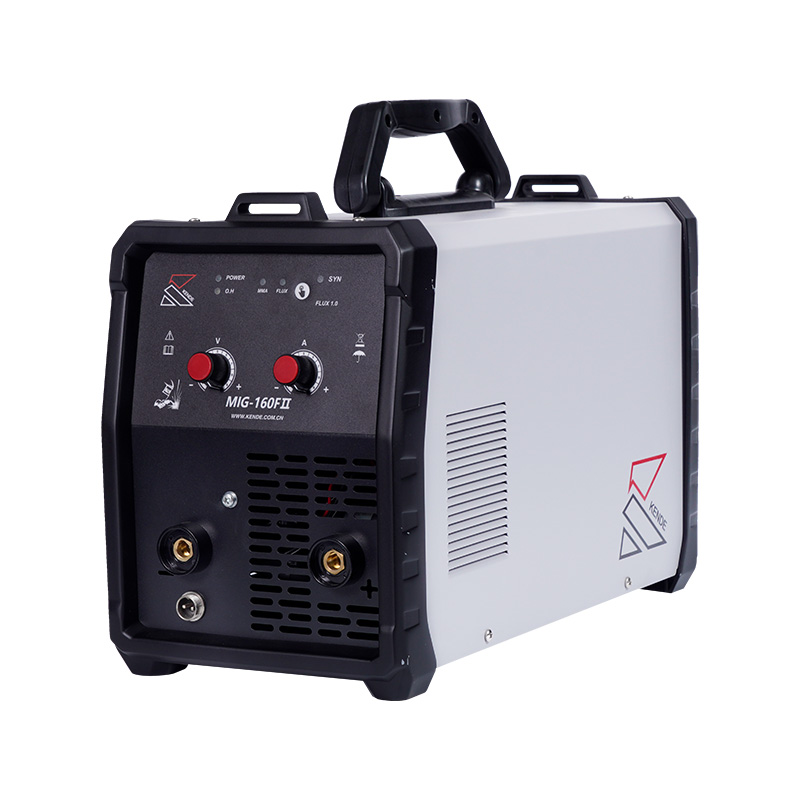

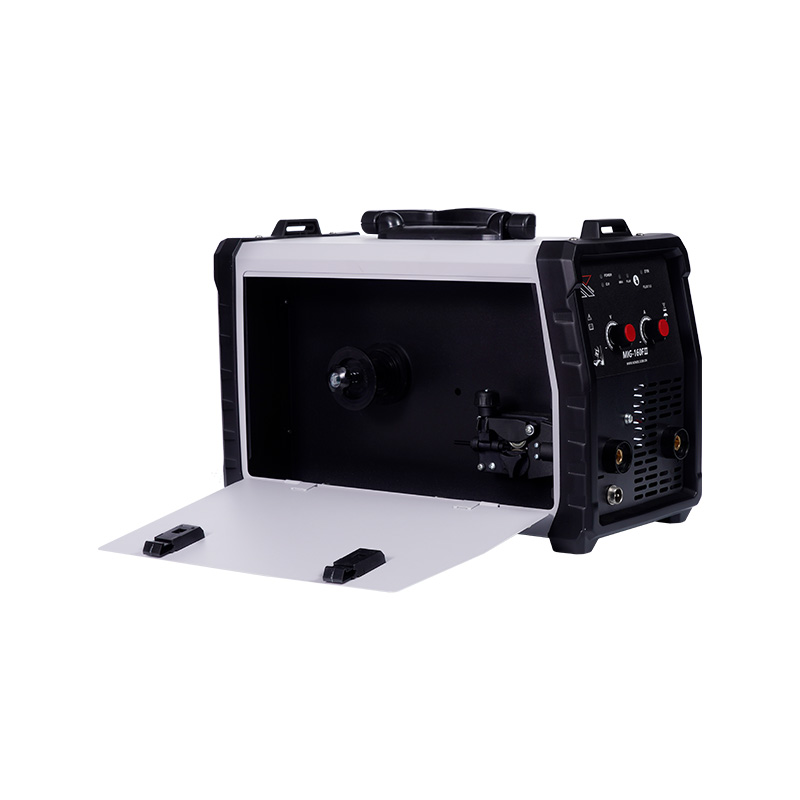

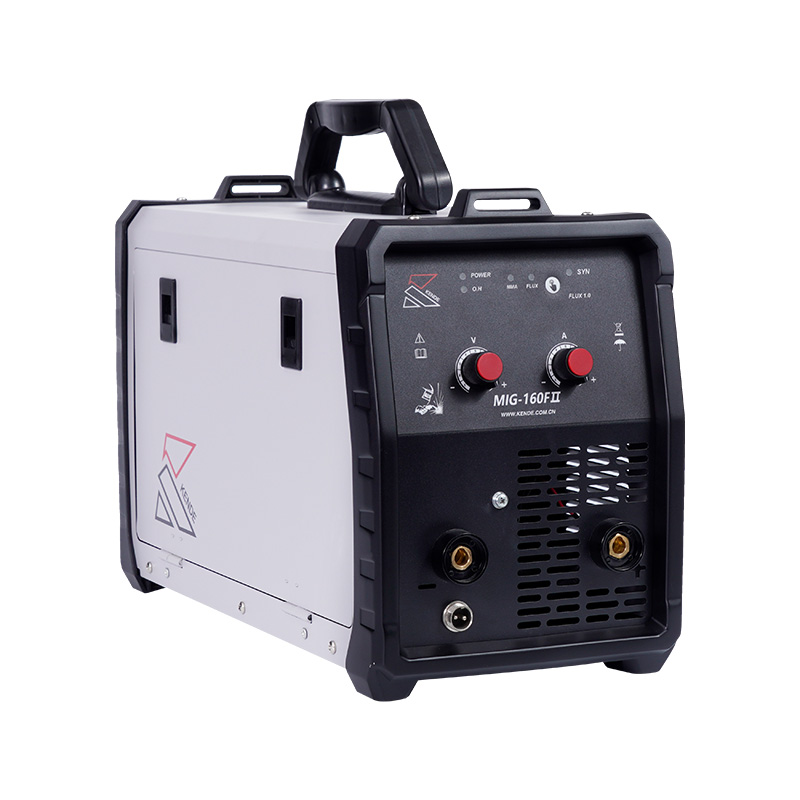

MIG-120FII/MIG-140FII/MIG-160FII Inverter Flux Cored Arc Wire ( FCAW ) Welding Machines

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / NEW Products / MIG / MIG-120FII/MIG-140FII/MIG-160FII Inverter Flux Cored Arc Wire ( FCAW ) Welding Machines

MIG-120FII/MIG-140FII/MIG-160FII Inverter Flux Cored Arc Wire ( FCAW ) Welding Machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●The welding machine is made by using advanced MCU ( Microprocessor Control Unit ), IGBT Inverter, and Switching mode power supply control technology
●TWO welding methods: No gas shielded Flux wire welding and MMA. A single knob or SYNERGIC parameters controlling under No gas shielded Flux wire welding can be selected or set.
●Can weld thin plates of carbon steel, alloy steel, stainless steel, and other materials
●The welding process can be exactly controlled by using an MCU control system, the welding arc is very stable.
●Small spatter, good welding performance, and weld of high quality
●Touch button, encoder parameters adjustment, simple operation
●Multiple protective measures, high reliability. strong resistance to power supply voltage changes
●High efficiency and energy saving, small volume, lightweight, easy to move, and beautiful appearance

Specifications

Model#

Description

Rated Input Voltage (V)

No load voltage(V)

Input Capacity (KW)

welding current (Amp)

Rated Duty Cycle (%)

fan cooled

power cable

PLUG

Class of Insulation

N.W(kg)

G.W. (kg)

machine size (mm)

Packaging

wire weight

welding cable

ACC

MIG-120FII

FLUX-MMA

230

60

4.2

FLUX: 40A/16V-120A/20.0V

 MMA:20A/20.8V-100A/24.0V

FLUX : 30%@120A

MMA:40%@100A

YES

2M  3G1.5mm2

VDE

H

5.5

7.8

380x170x230mm

color box

0.45-1kg

10mm2   , 2m+1.5m

MIG welding torch with 2m cable, earth clamp with 1.5m cable ,   Welding mask,   lence (CE) and 1 piece combi-wire brush with hammer, nozzles (1x0.6mm, 1x0.8mm, 1X0.9 mm)

MIG-140FII

5.1

FLUX: 40A/16V-140A/21.0V

MMA:20A/20.8V-120A/24.8V

FLUX: 30%@140A

MMA:40%@120A

8.6

7.8

420X215X315mm

0.45-5kg

16mm2   , 2m+1.5m

MIG-160FII

6

FLUX: 40A/16V-160A/22V

MMA:20A/20.8V-140A/25.6V

FLUX : 20%@160A

MMA:30%@140A

8.8

9.5

420X215X315mm

0.45-5kg

16mm2   , 2m+1.5m

MIG welding torch with 2.5m cable, earth clamp with 2m cable ,   Welding mask,   lence (CE) and 1 piece combi-wire brush with hammer, nozzles (1x0.6mm, 1x0.8mm, 1X0.9 mm, 1x1.0mm)
