MIG-200DI/MIG-205DI MCU Controlled Multi-function Gas Shielded Welding Machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●The welding machine is made by using advanced MCU, IGBT Inverter, and Switching mode power supply control technology

●Three welding methods: MIG/MAG/No gas shielded Flux wire welding and MMA.VRD function under MMA welding.A single knob or SYNERGIC parameters controlling under MIG/MAG/No gas shielded Flux wire welding

●Can weld thin and medium plates of carbon steel, alloy steel, stainless steel, and other materials.

●The welding process can be exactly controlled by using MCU ( Microprocessor Control Unit) control system, the welding arc is very stable.

●Small spatter, good welding performance, and weld of high quality.

●LED display, touch button, encoder parameters adjustment, simple operation.

●Multiple protective measures, high reliability. strong resistance to power supply voltage changes.

●High efficiency and energy saving, small volume, lightweight, easy to move and beautiful appearance

Specifications

Model#

Style

NO-LOAD VOLTAGE

Rated Input Voltage (V)

FREQUENCY (Hz)

Input Capacity (KW)

Welding Current Range (Amp)

Welding voltage range (V)

Rated Duty Cycle (%)

Usable Electrode(mm)

Class of Insulation

FAN COOLED

THERMAL PROTECTION

DEGREES OF PROTECTION

Net Weight (Kgs)

machine size (mm)

ACC

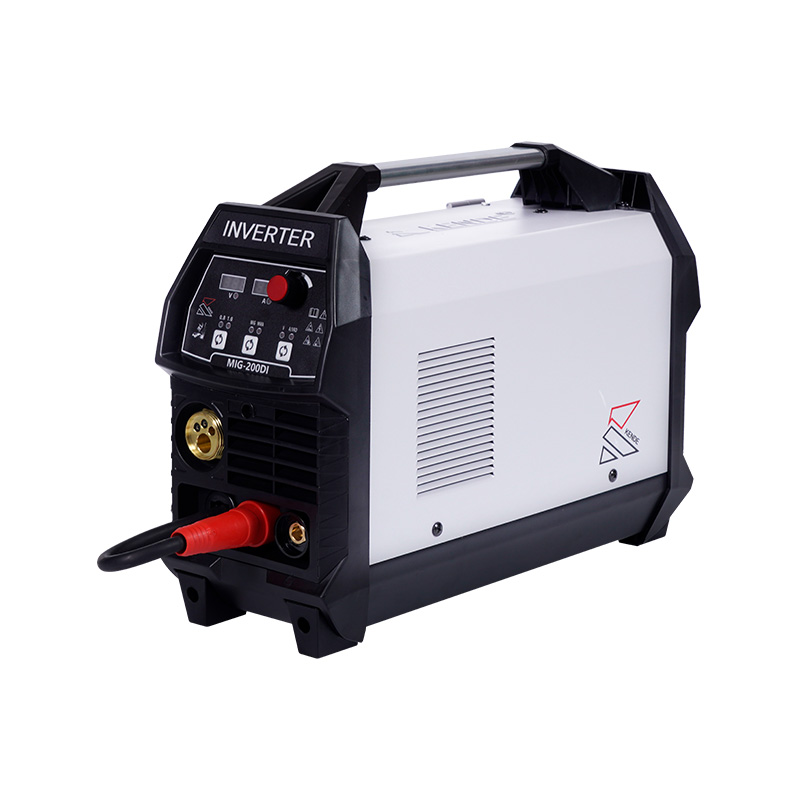

MIG-200DI

INVERTER MMA/MAG/TIG WELDER

54V

230

50/60HZ

6.1

MIG  : 50 - 160 MMA :40- 160

MIG  : 16.5V-22V MMA:  21.6V - 26.4V

0.4

MIG: 0.8 - 1.0 MMA: 1.6 - 4.0 FLUX:  0.8-1.0

H

YES

YES

H

8

450*180*315

MIG welding torch with 2m cable, earth clamp with 2m cable ,   Welding mask,   lence (CE) and 1 piece combi-wire brush with hammer, nozzles

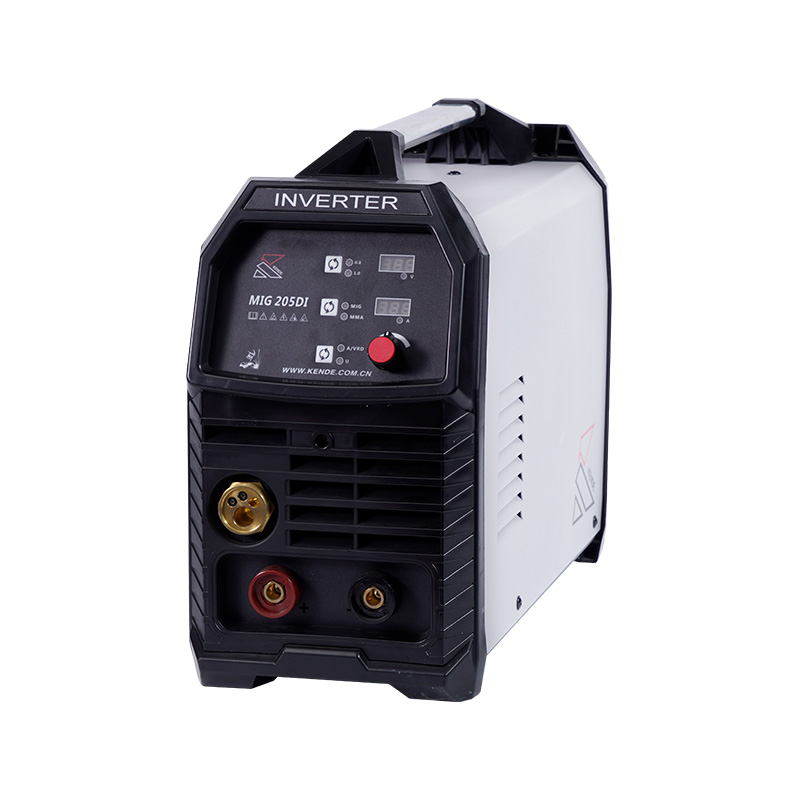

MIG-205DI

INVERTER MMA/MAG/TIG WELDER

54V

230

50/60HZ

7.2

MIG  : 50 - 180 MMA :40 - 180

MIG  : 16.5V  -  23V  MMA:   21.6V-27.2V

0.4

MIG: 0.8 - 1.0 MMA: 1.6 - 4.0 FLUX:  0.8-1.0

H

YES

YES

H

9.5

490*220*380

MIG welding torch with 2.5m cable, earth clamp with  2m cable ,   Welding mask,   lence (CE) and 1 piece combi-wire brush with hammer, nozzles
