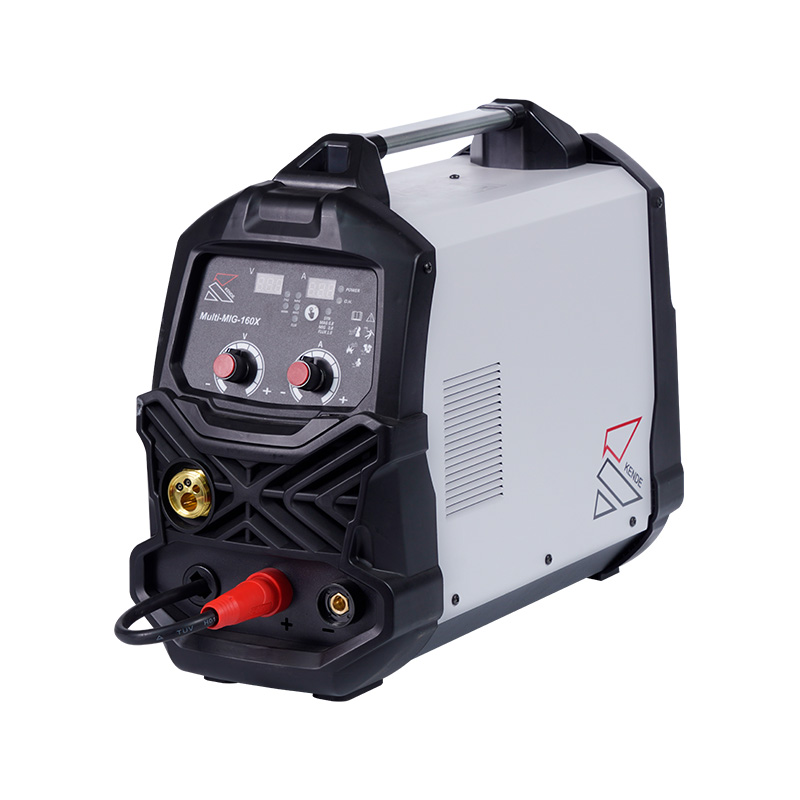

Multi-MIG-160X/Multi-MIG-180X/Multi-MIG-200X MCU Controlled Multi-function Gas Shielded Welding Machines

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

●The welding machine is made by using an advanced MCU (Microprocessor Control Unit) GBT inverter and Switching mode power supply control technology

●Five welding methods: MIC/MAINo gas shielded Flux wire welding, T1G and MMA. A single knob or SYNERIC parameters controlling under MICGIMAGNogas shielded Flux wire welding.

●Can weld thin and medium plates of carbon steel, alloy steel, stainless steel, and other materials.

●The welding process can be exactly controlled by using an MCU control system, the welding arc is very stable

●Small spatter-good welding performance and weld of high quality.

●LED display, touch button, and welding parameters can be adjusted, with simple operation.

●Multiple protective measures, high reliability, and strong resistance to power supply voltage changes.

●High efficiency and energy saving, small volume, lightweight, easy to move, and beautiful appearance.

Specifications

Model#

Description

Rated Input Voltage (V)

No load voltage(V)

Input Capacity (KW)

welding current (Amp)

Rated Duty Cycle (%)

power cable

Class of Insulation

N.W. (kg)

machine size (mm)

Packaging

wire weight

ACC

Multi-MIG-160X

MIG/MMA /TIG

230

54

7.1

MIG: 40A/16.0V-160A/22.0V
TIG: 15A/10.6V-160A/16.4V
MMA:20A/20.8V-160A/26.4V

MIG : 20%@160A
TIG : 20%@160A
MMA:20%@160A

2M  3G1.5mm2

H

8.5

 X:490x215x380(with handlehandle)

color box

0.45-5kg

EURO MIG welding torch with  2.5M welding cable, electrode holder with 2m cable, earth clamp with 1.5m cable,    Welding mask,   license, and 1 piece combi-wire brush with a hammer

Multi-MIG-180X

MIG/MMA /TIG

230

61.5

8

MIG: 40A/16.0V-180A/23.0V
TIG: 15A/10.6V-180A/17.2V
MMA:20A/20.8V-180A/27.2V

MIG :15%@180A
TIG :15%@180A
MMA:15%@180A

2M  3G2.5mm2

H

9.1

 X:490x215x380(with handlehandle)

color box

0.45-5kg

EURO MIG welding torch with  2.5M welding cable, electrode holder with 2m cable, earth clamp with 1.5m cable,    Welding mask,   license, and 1 piece combi-wire brush with a hammer

Multi-MIG-200X

MIG/MMA /TIG

230

61.5

9.2

MIG: 40A/16.0V-200A/24.0V
TIG: 15A/10.6V-200A/18.0V
MMA:20A/20.8V-200A/28.0V

MIG : 15%@200A
    TIG : 15%@200A  MMA:15%@2000A

1.5M  3G2.5mm2

H

9.2

 X:490x215x380(with handlehandle)

color box

0.45-5kg

EURO MIG welding torch with  2.5M welding cable, electrode holder with 2m cable, earth clamp with 1.5m cable,    Welding mask,   license, and 1 piece combi-wire brush with a hammer
